Hollow Needle
Create one-of-a-kind rugs and broadloom carpets
Produce one-of-a-kind luxury loop-pile carpet

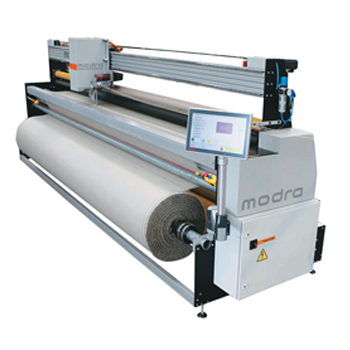

Modra’s Hollow Needle Mtuft enables you to control multiple yarns through a single, hollow needle to create uniquely patterned rugs and broadloom carpets.
Its interface lets you enter simple patterns and needle-shift profiles quickly and easily or import more complex patterns in a range of formats.
Features:
- Powerful software to control gauge, stitch rate and pile heights
- Loop pile construction only
- Two machine sizes – 4m or 5m product width
- Yarn is fed through a single, hollow needle. It can be either single yarn feed or dual yarn feed
- Touch screen interface with Microsoft windows OS
- End out detection system for end outs as well and yarn wraps as well as individual sensors for yarn break detection
- Rear take-up roller

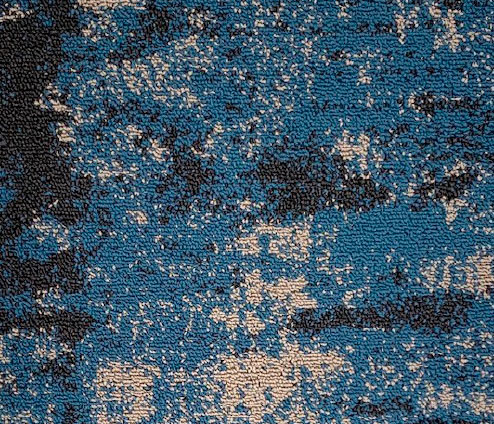

Benefits
Produce one-of-a-kind luxury loop-pile carpet that can then be sheared to create tip-shear and cut-loop effects.
- Developed as a production machine, suitable for rugs and broadloom
- Single needle machine, up to 4 ends of yarn at once. This gives you the opportunity to mix different yarns – wool and silk for example, to create a unique product.
- Final product has more of a hand-made, custom feel to it
- Copes very well with course yarn and large gauges and will be faster than the Mtuft
- Unique patterns possible using multiple pile heights, shift effects, tip shearing,
- Utilise yarn that might otherwise be waste – leftover from larger product runs
- Suitable for course yarn and large gauges
- Simple machine, software driven and requires very few mechanical adjustments
- Once set up, it is capable of running unattended
Downloads
Product
Brochure
Technical
Specifications
Reference
List
Request or Create
YOUR OWN SAMPLE
Ask us about the high-quality samples
made on the Hollow Needle machine.
CALL US ON +61 3 5622 3261
Sample Gallery

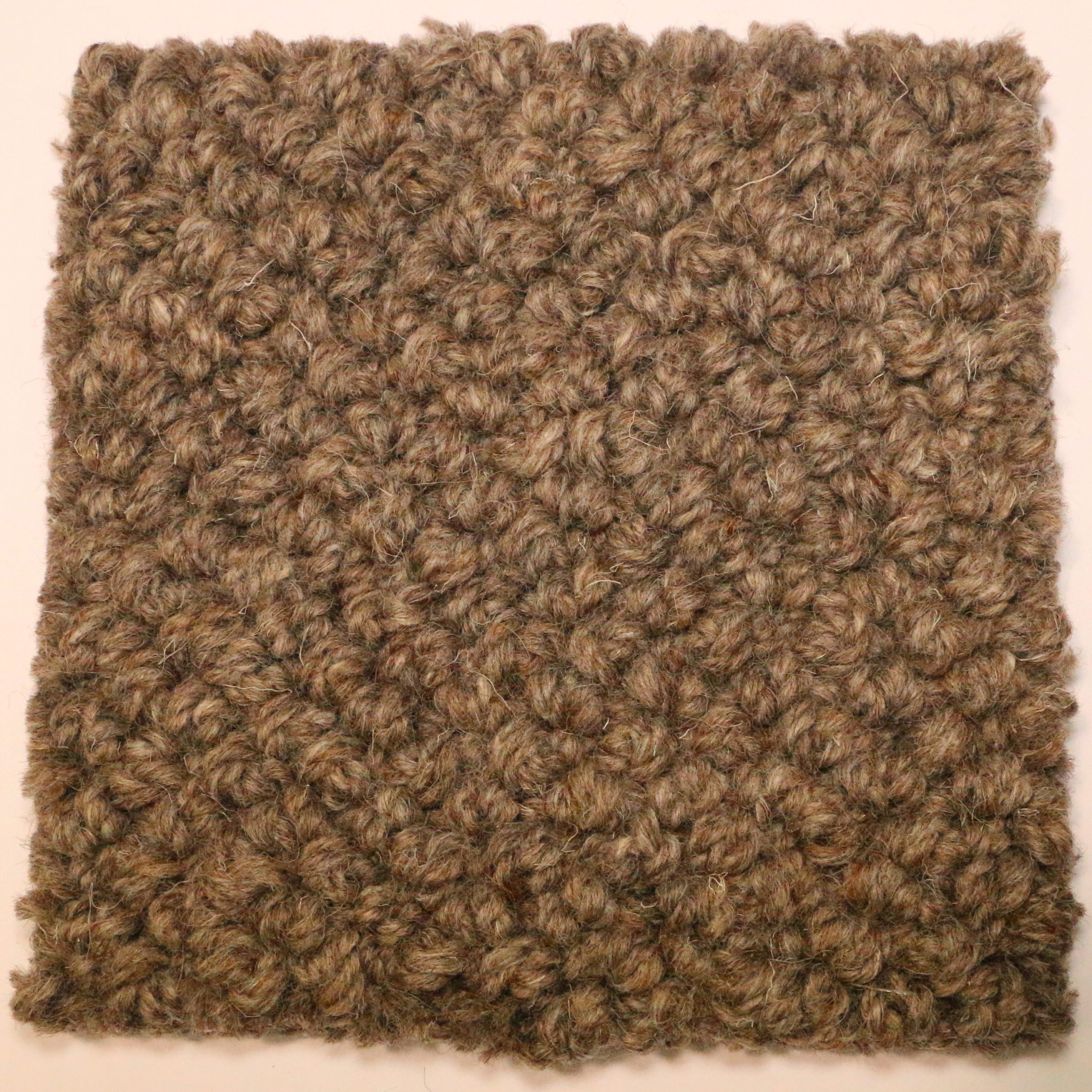

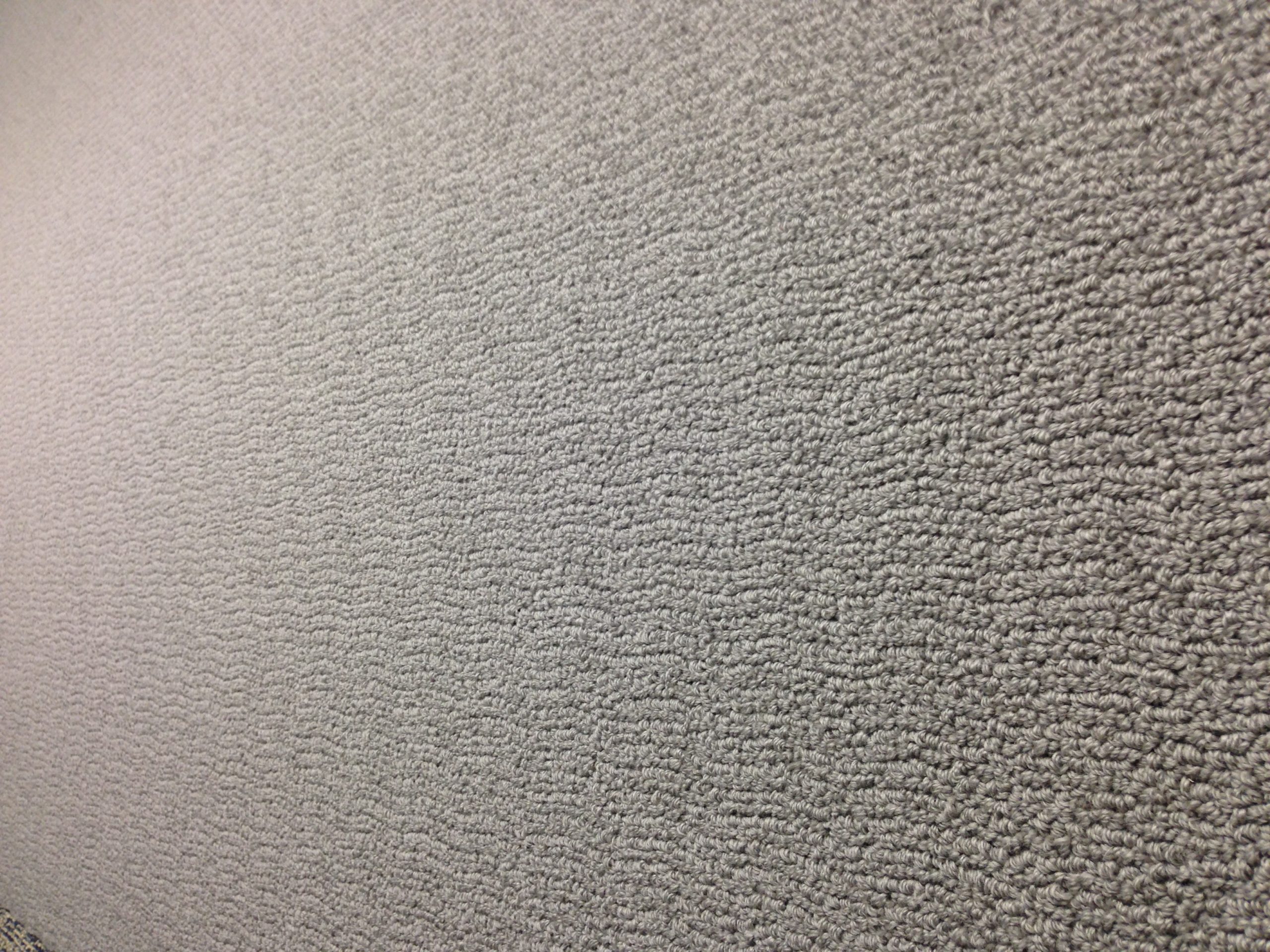

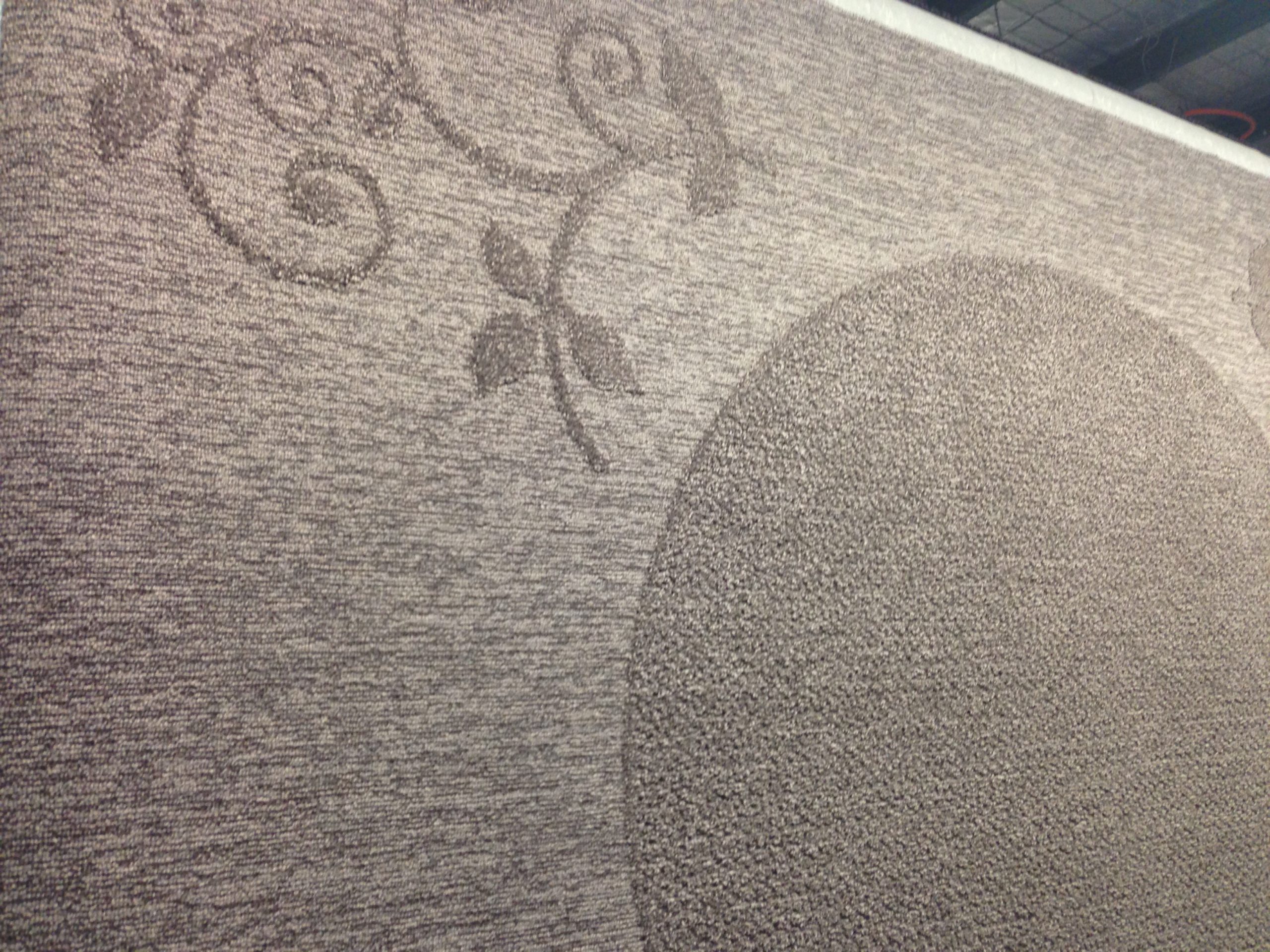

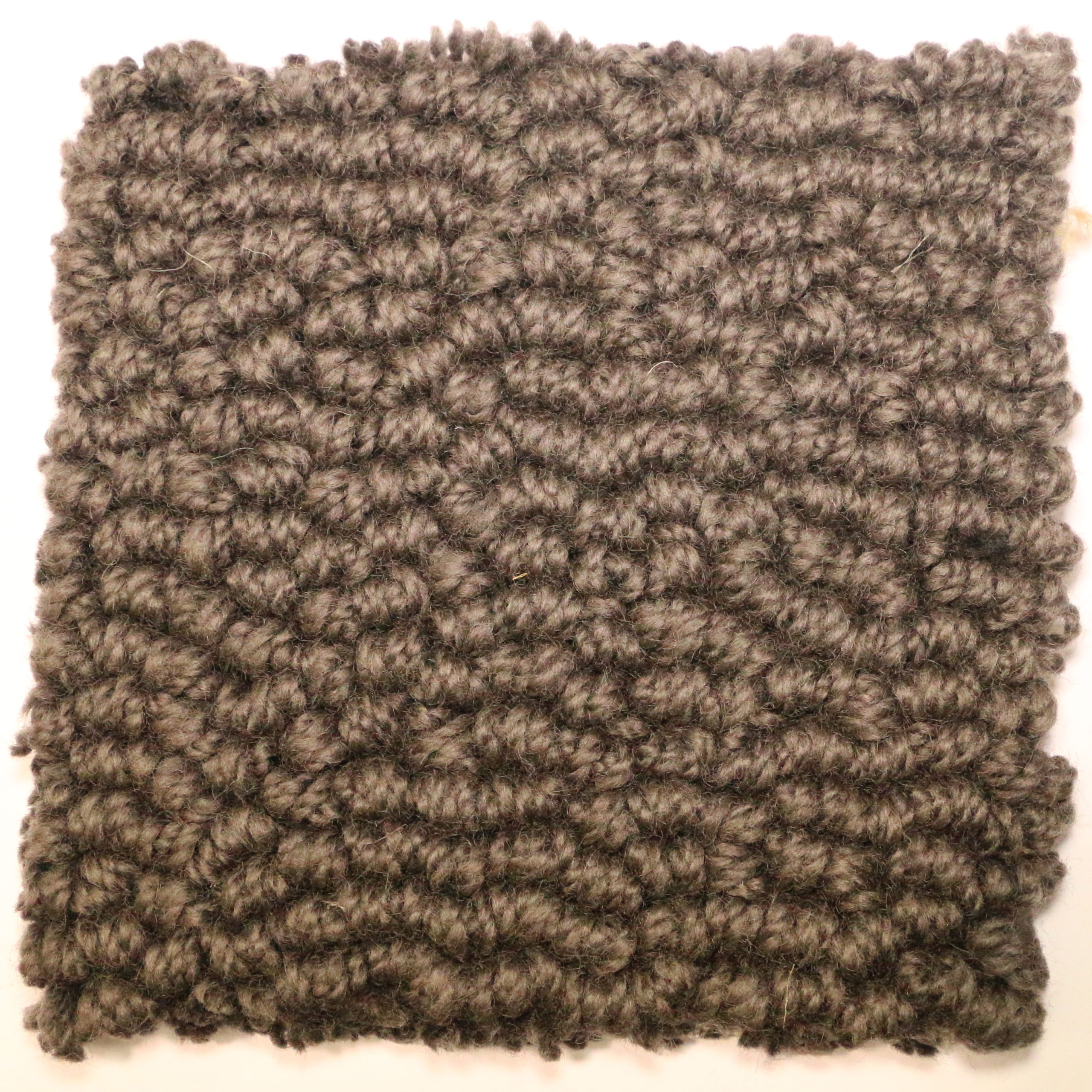

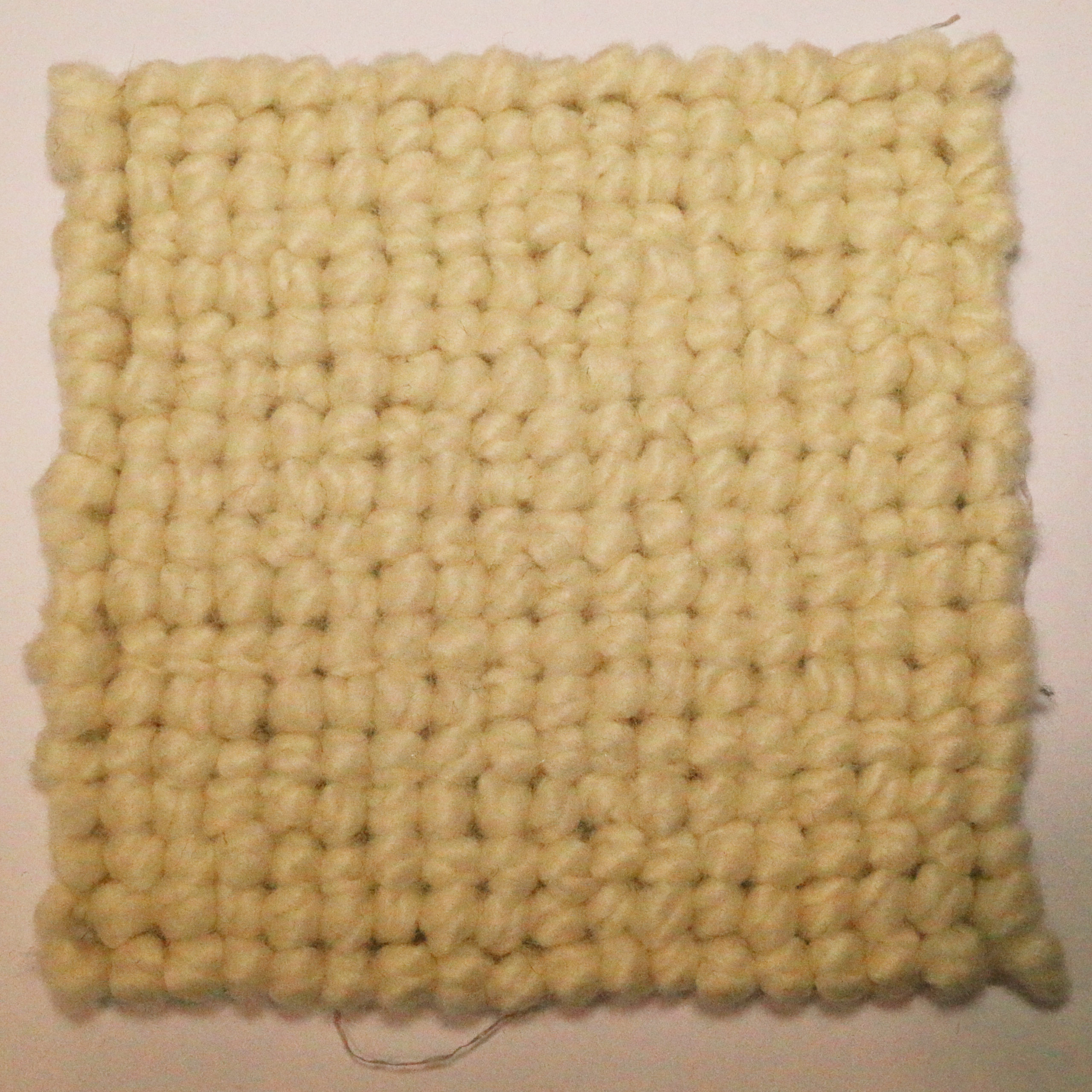

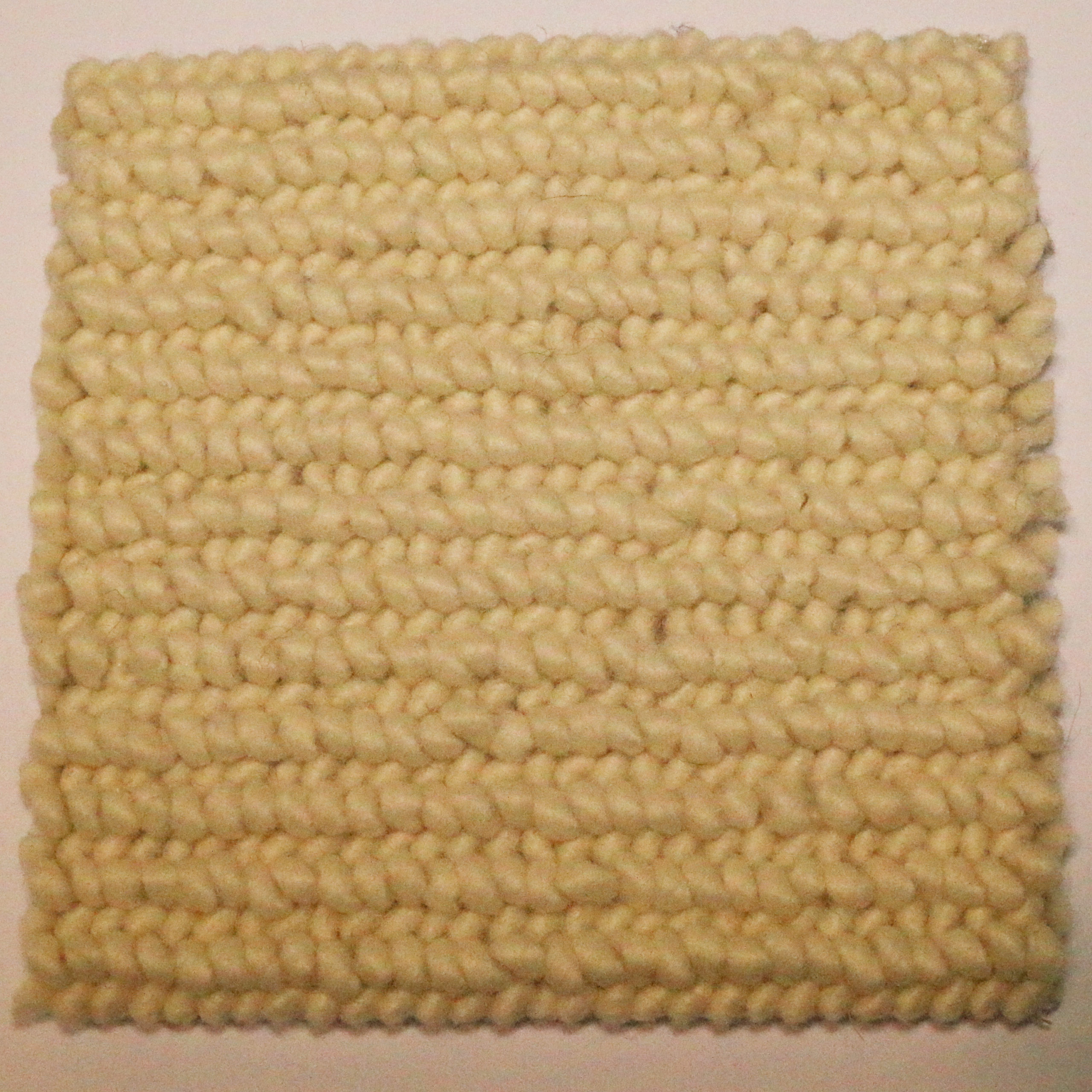

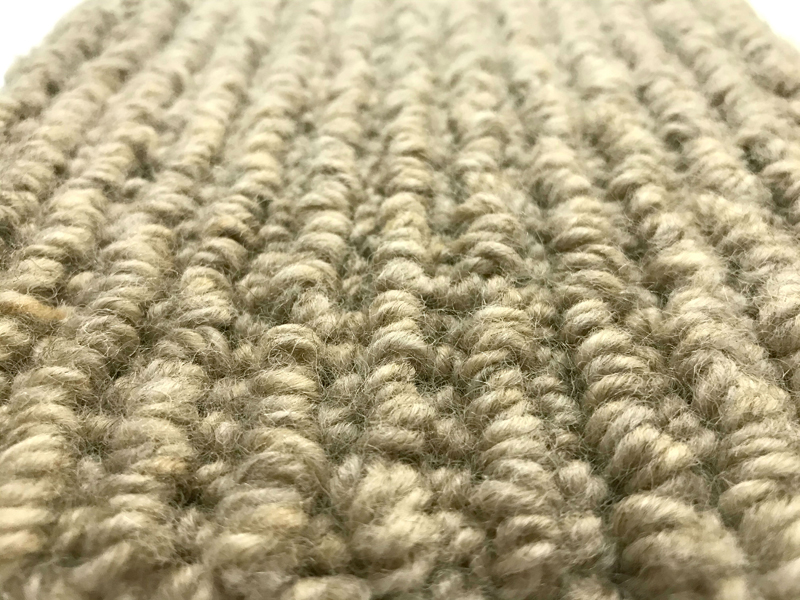

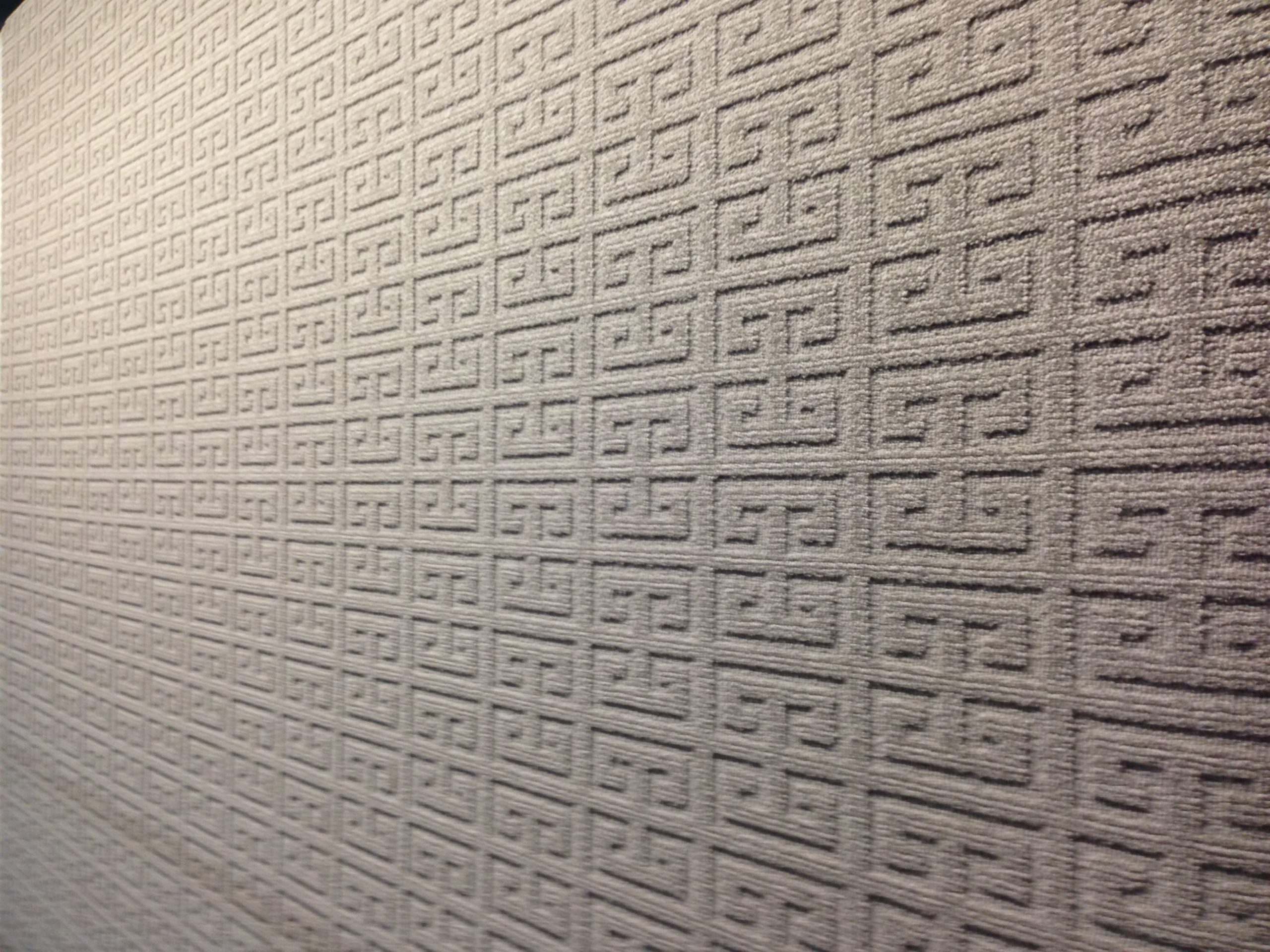

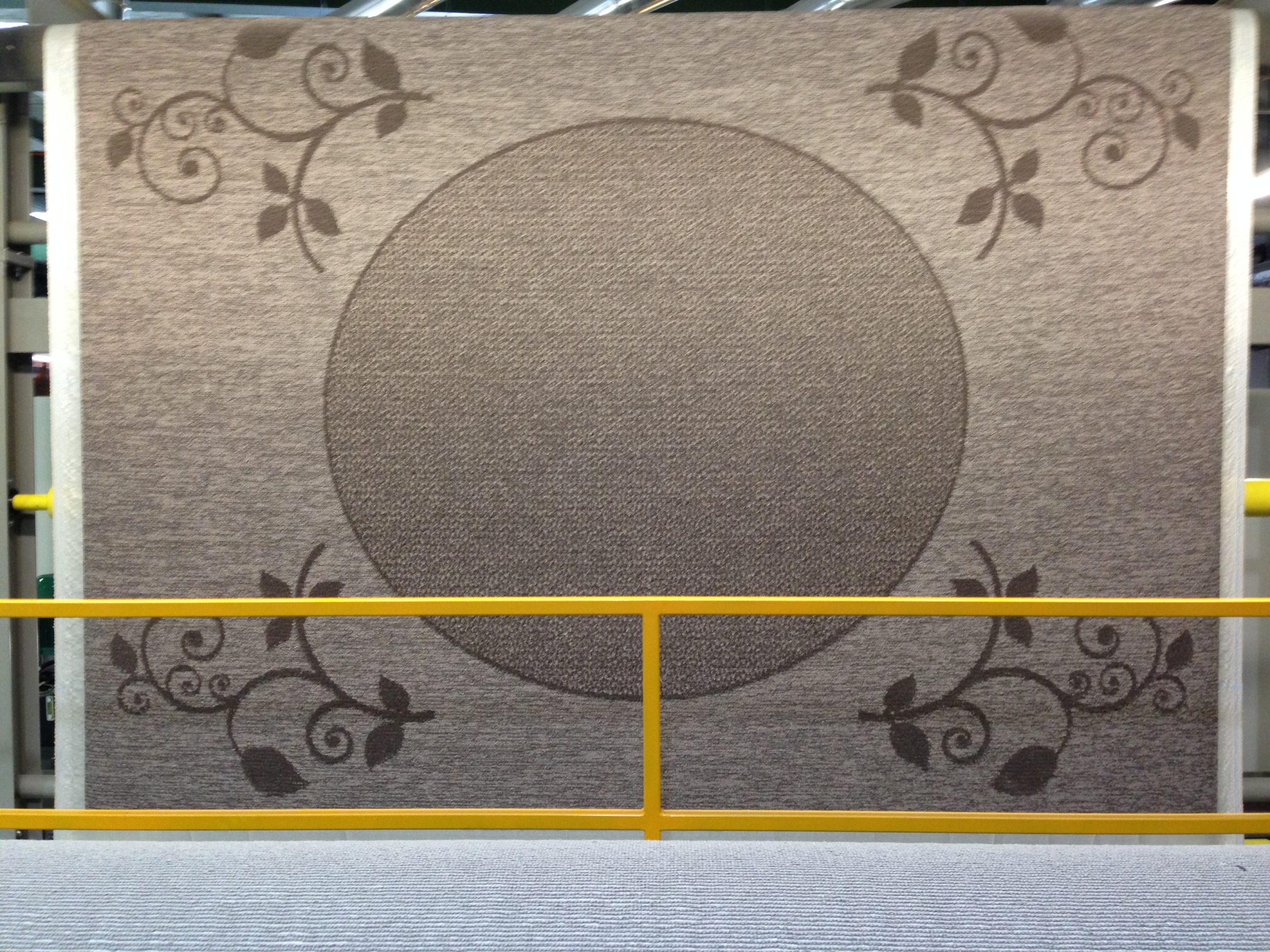

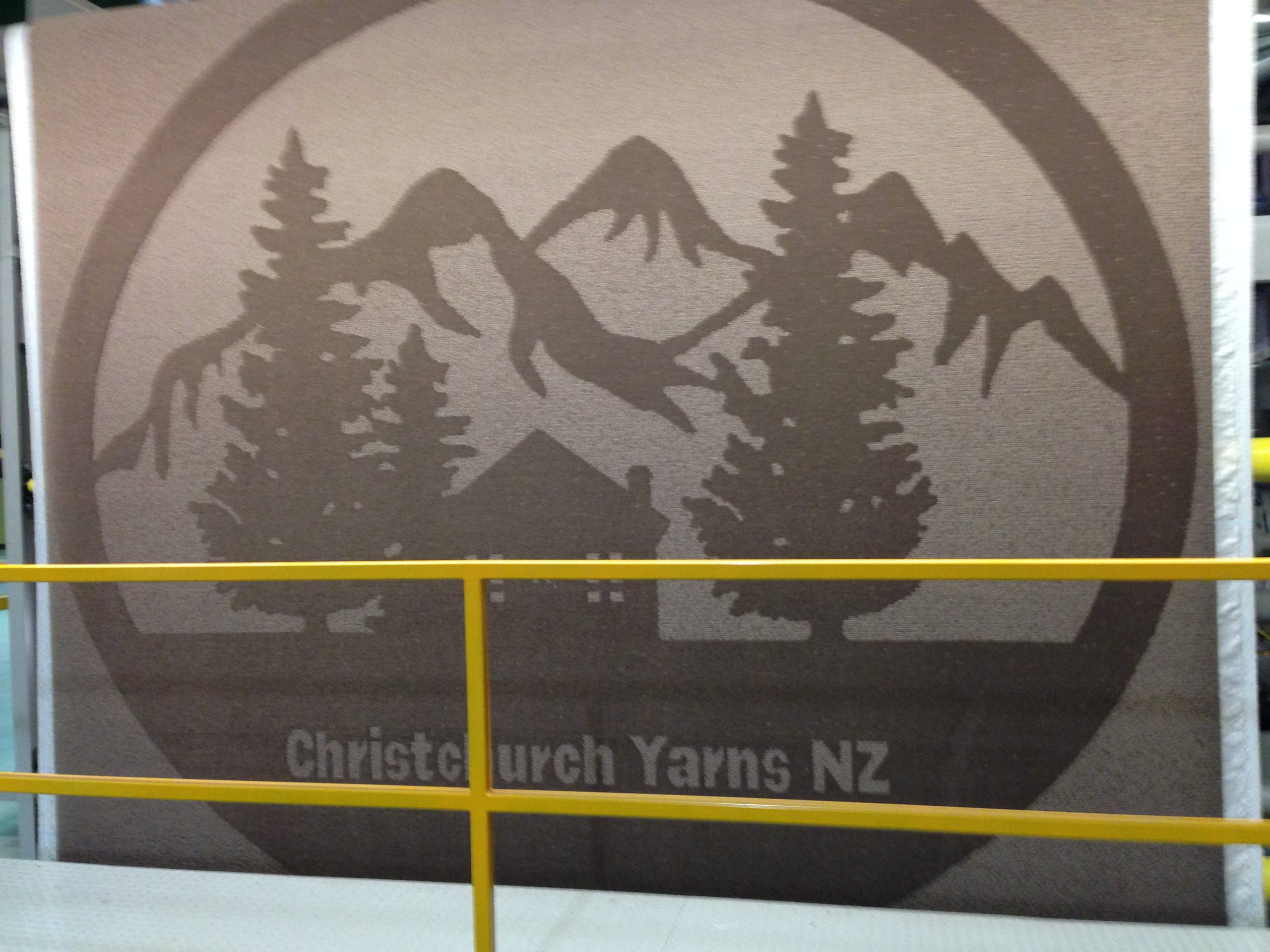

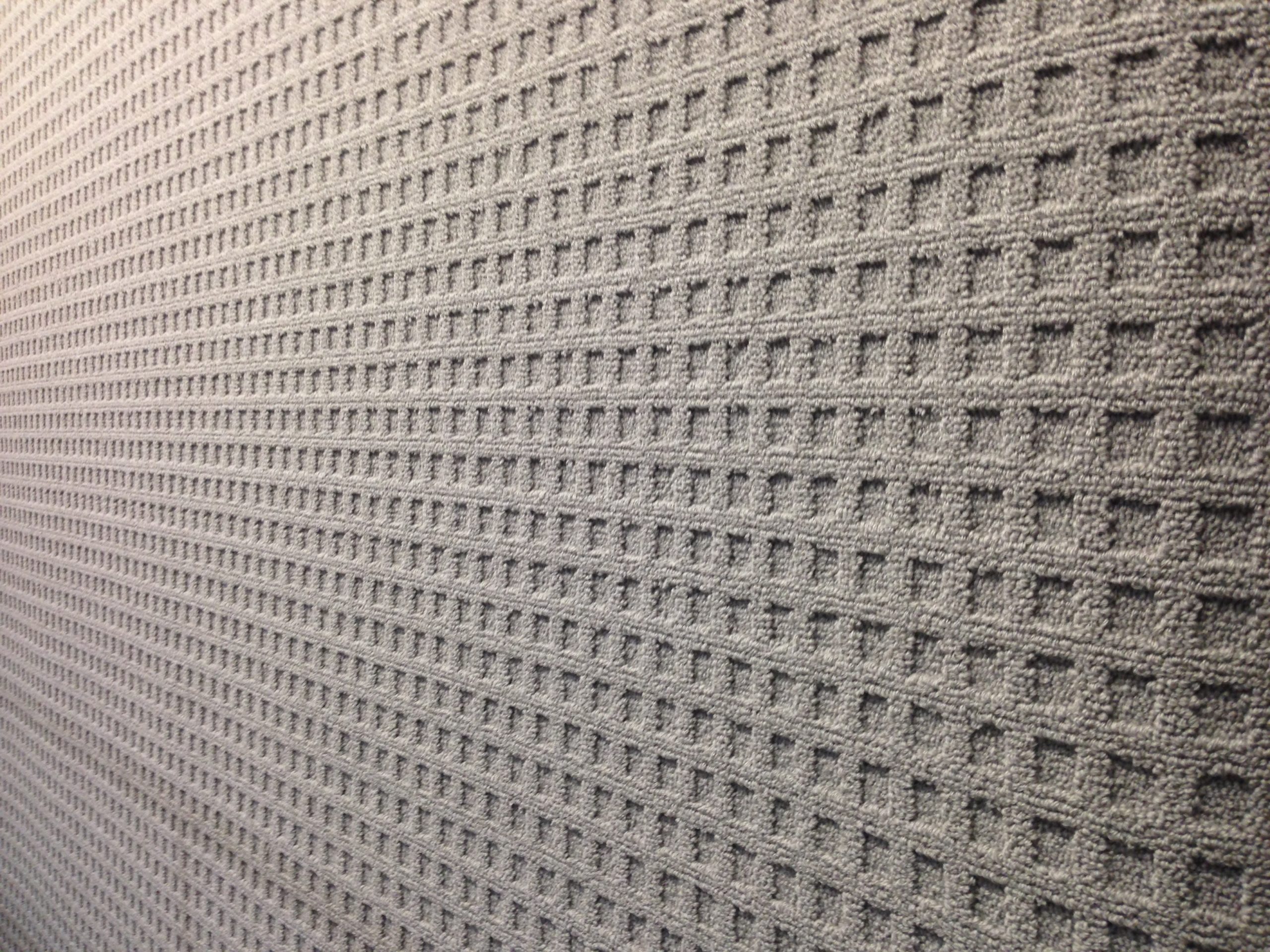

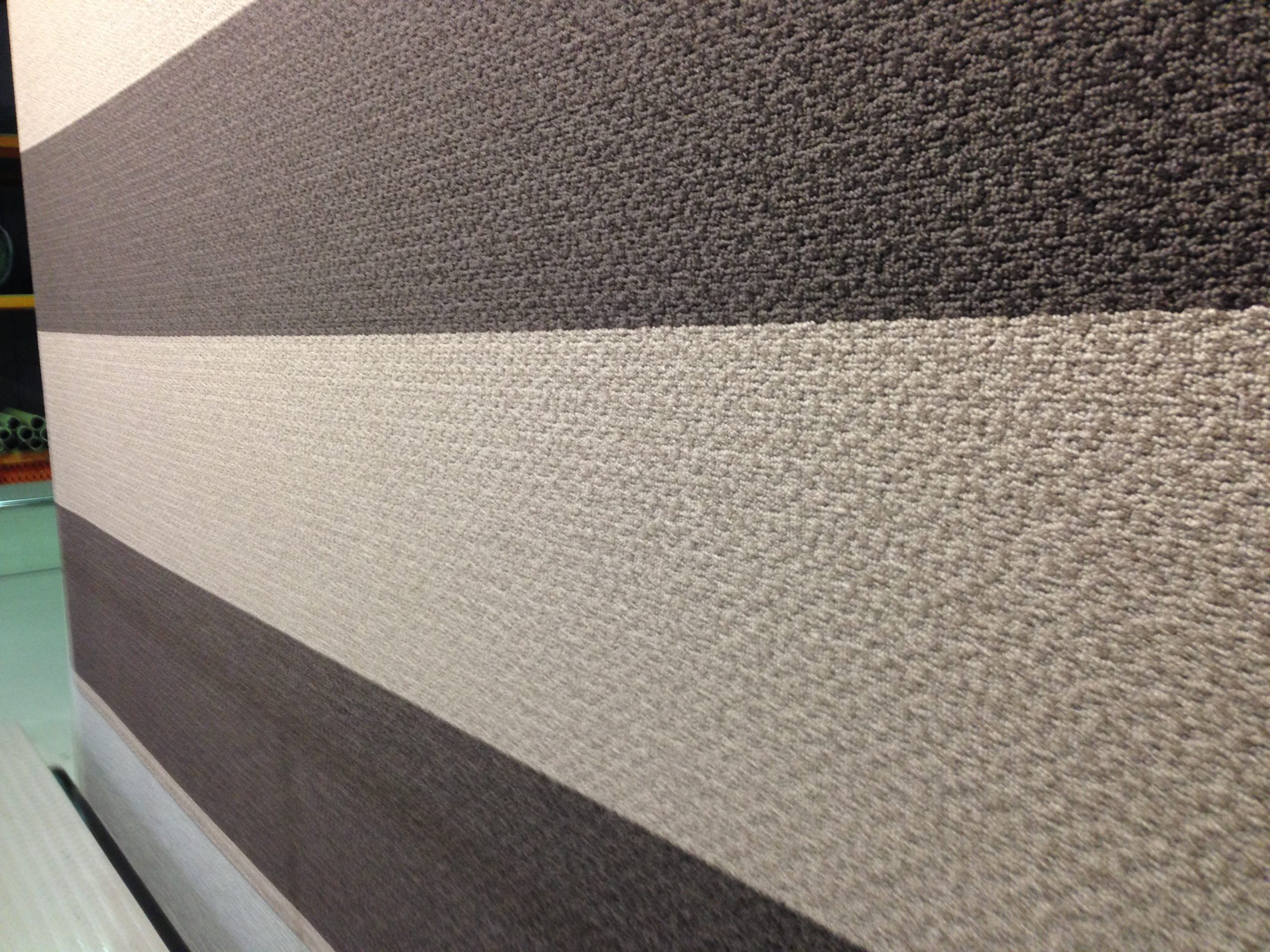

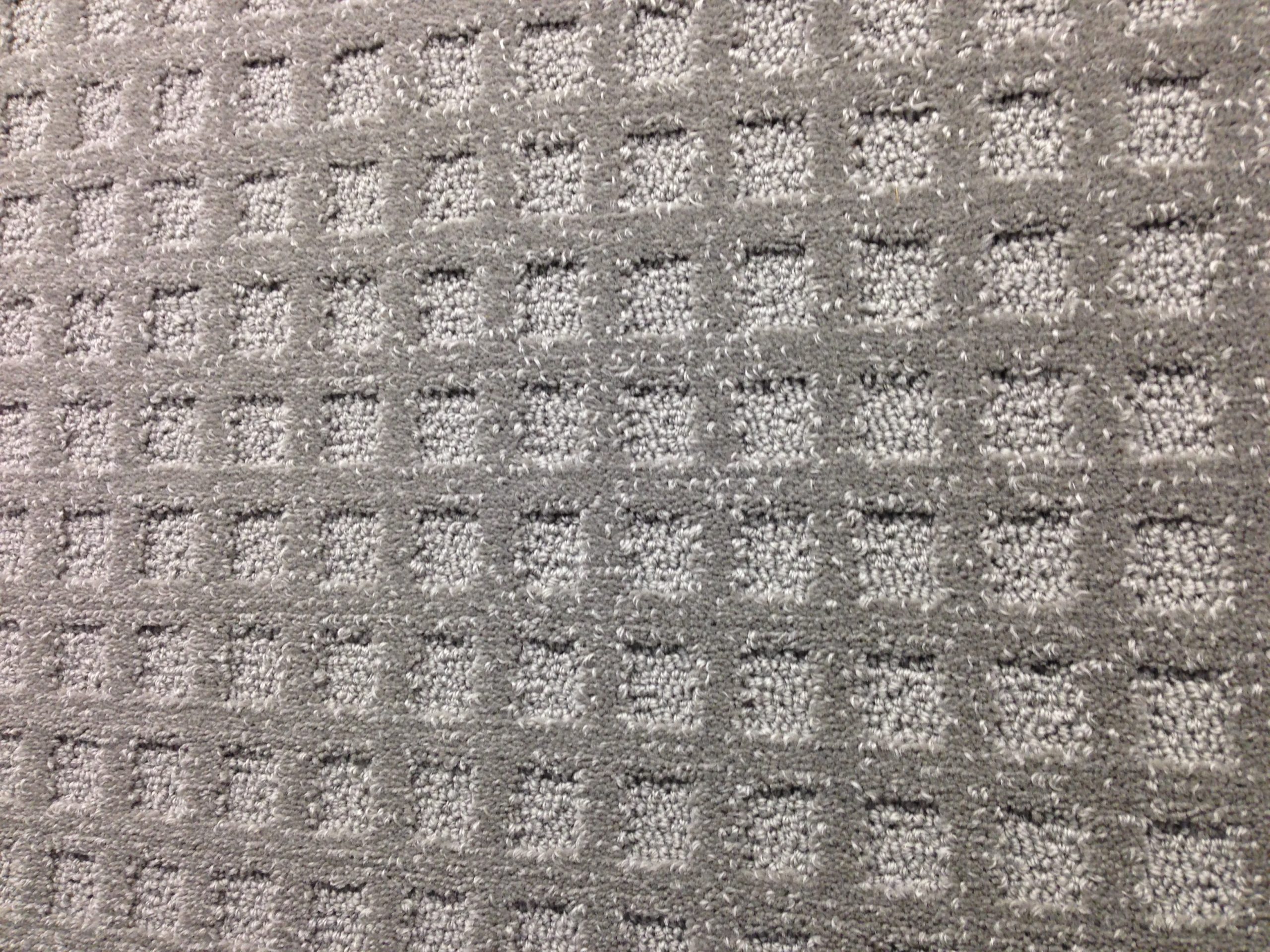

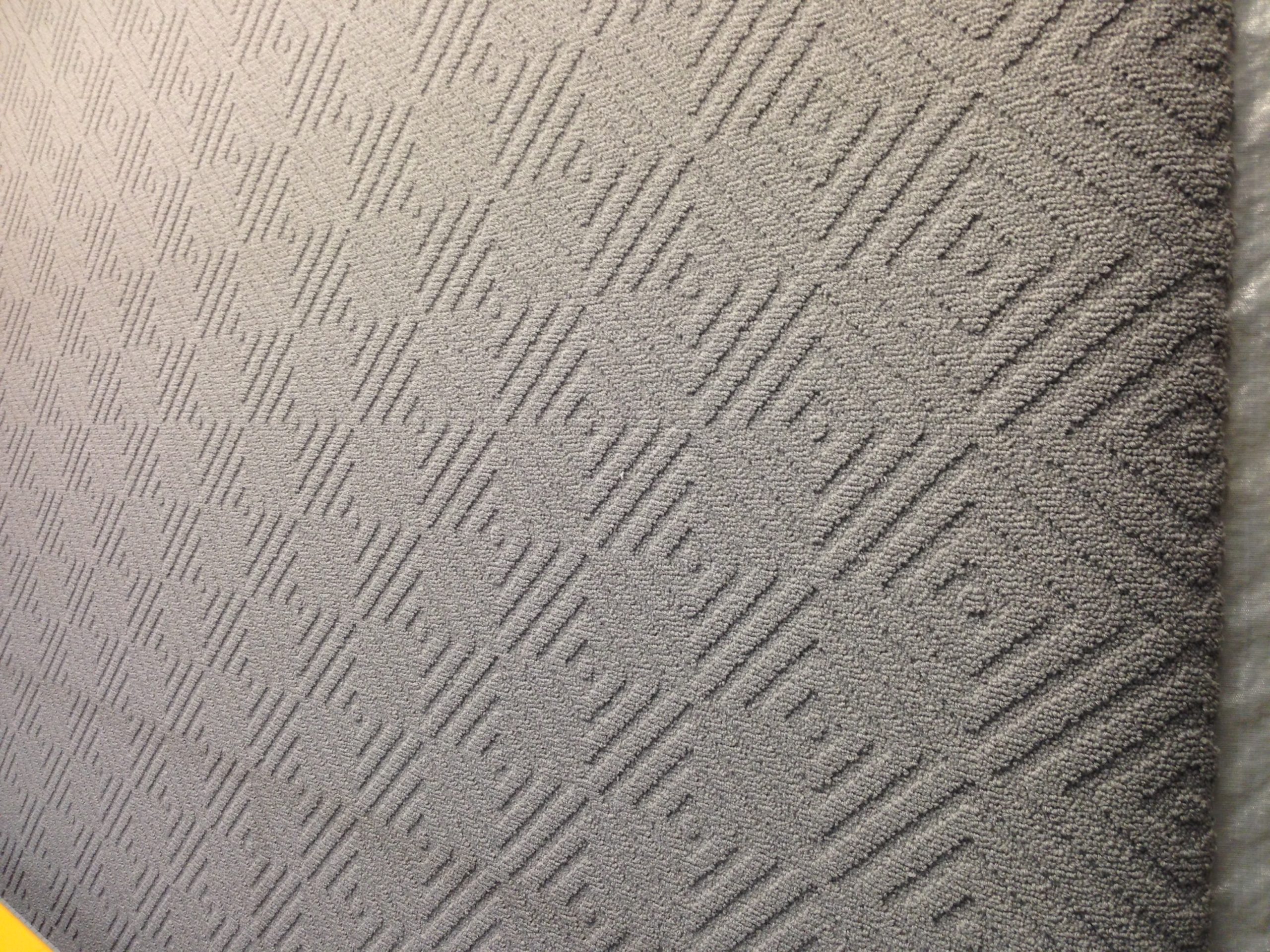

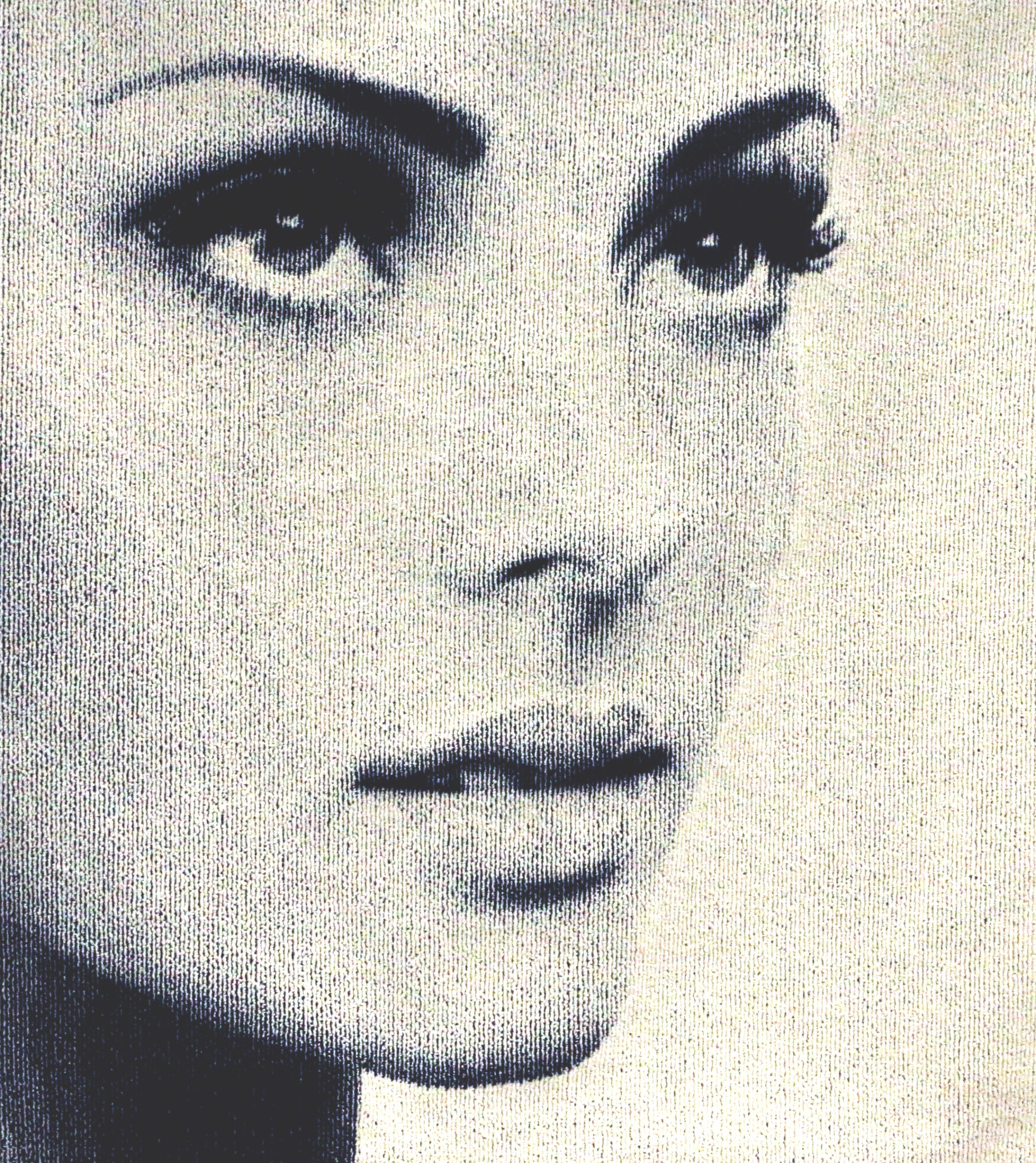

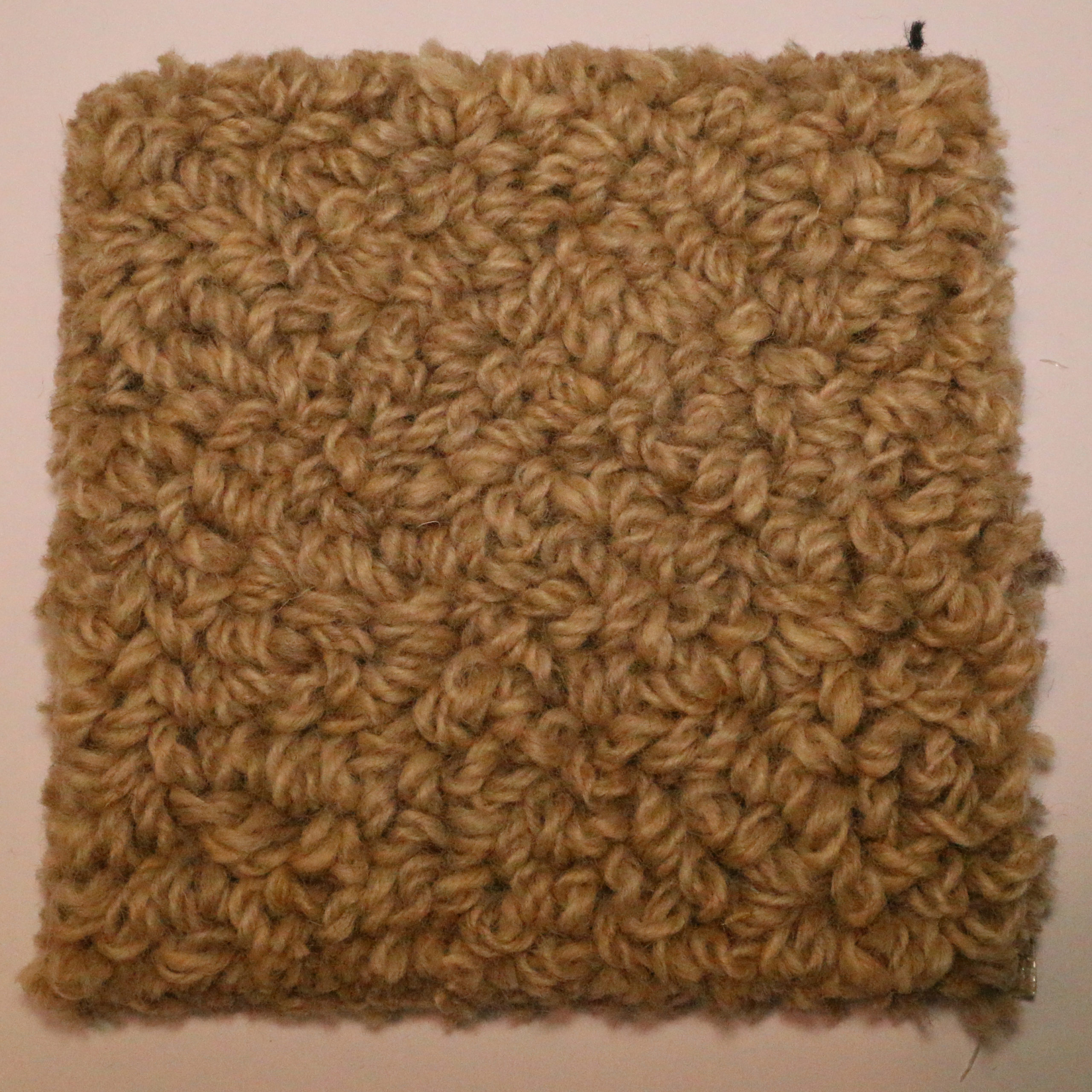

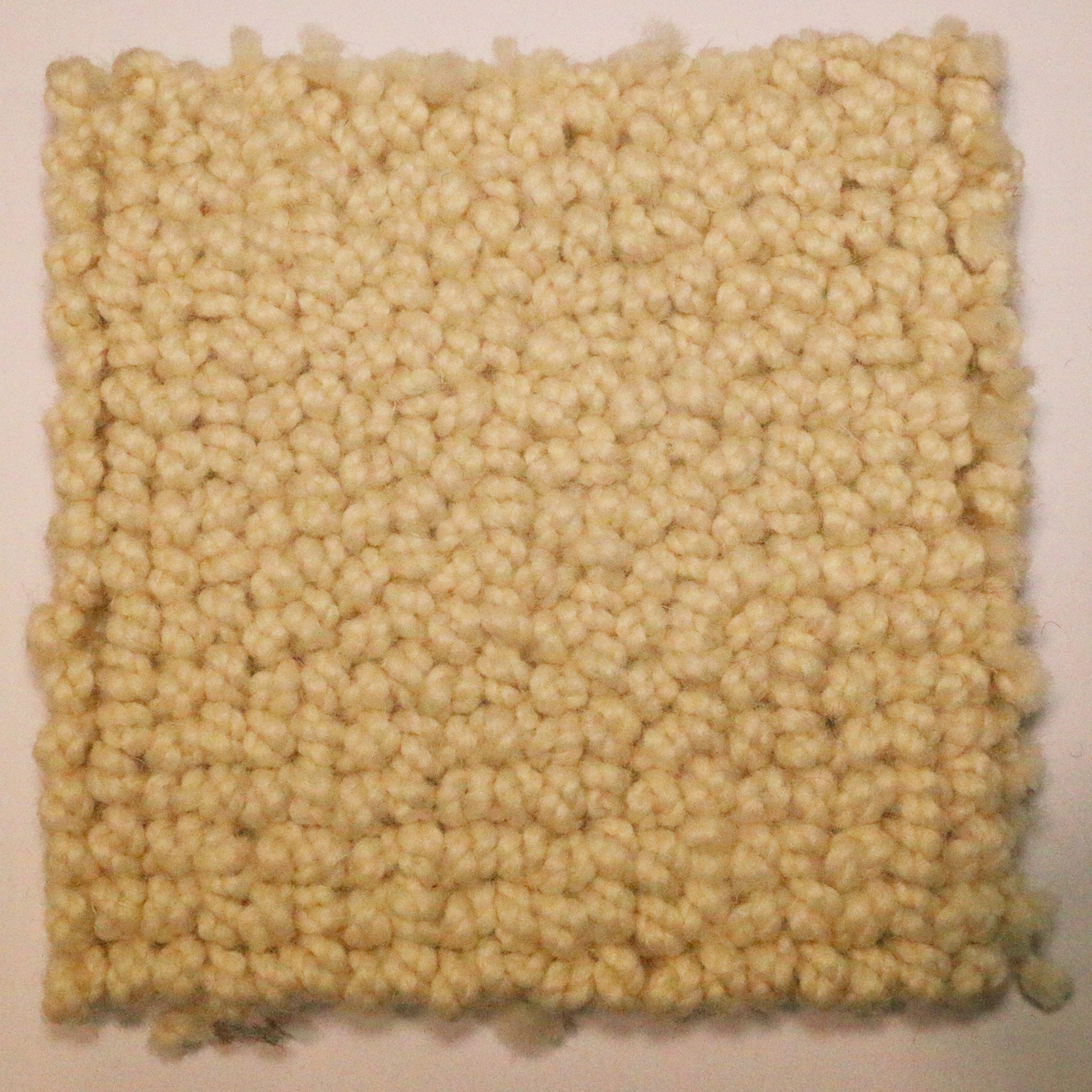

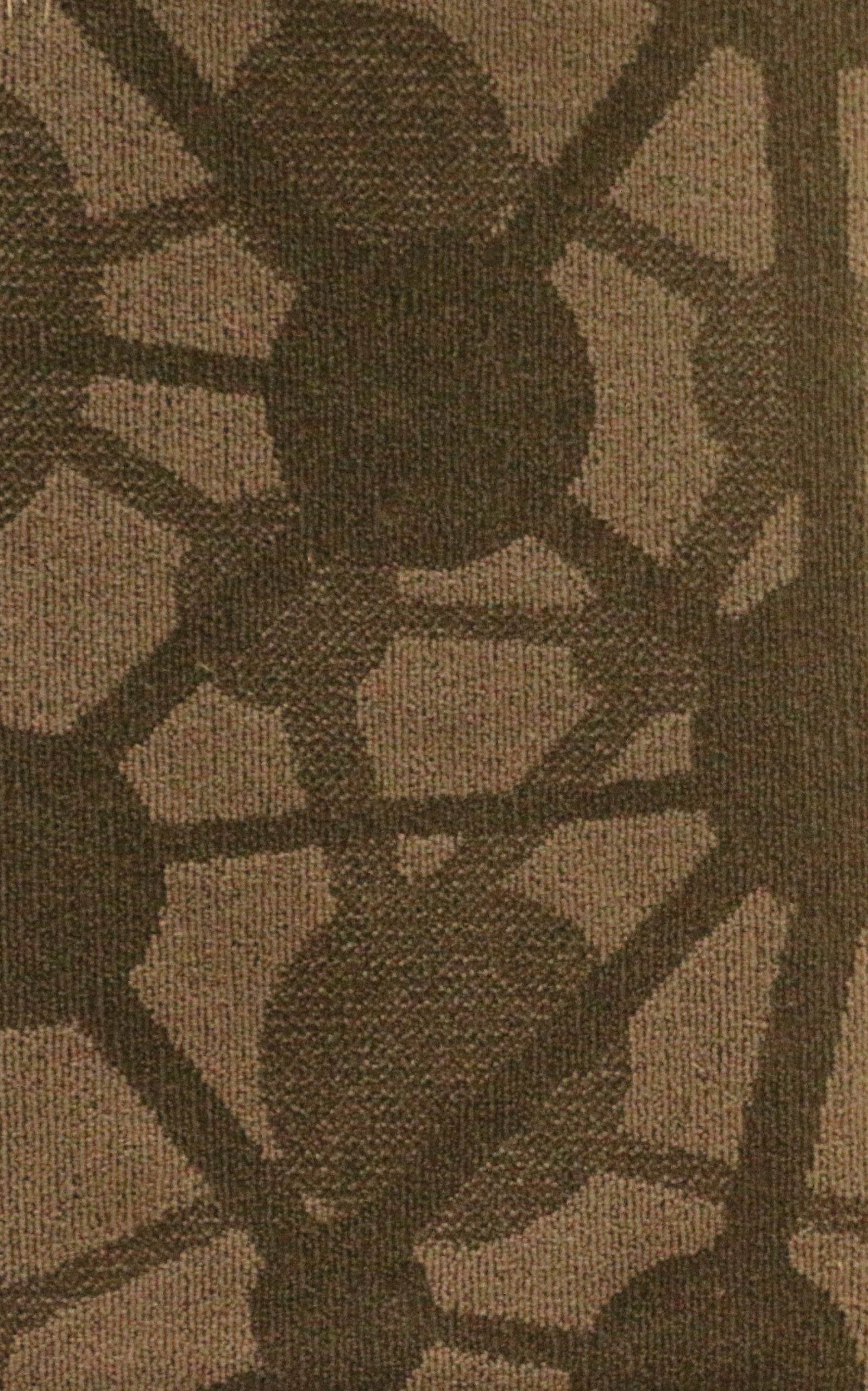

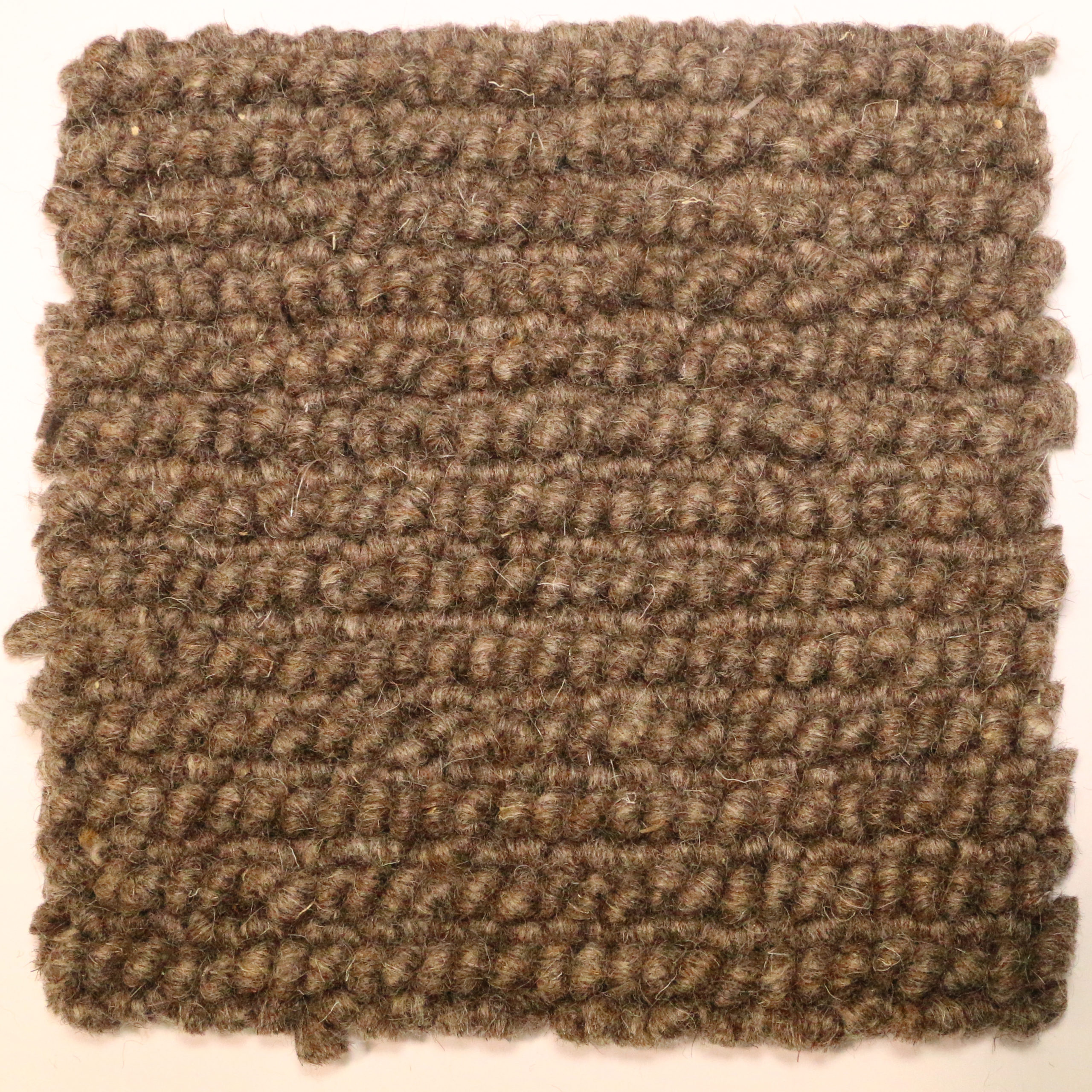

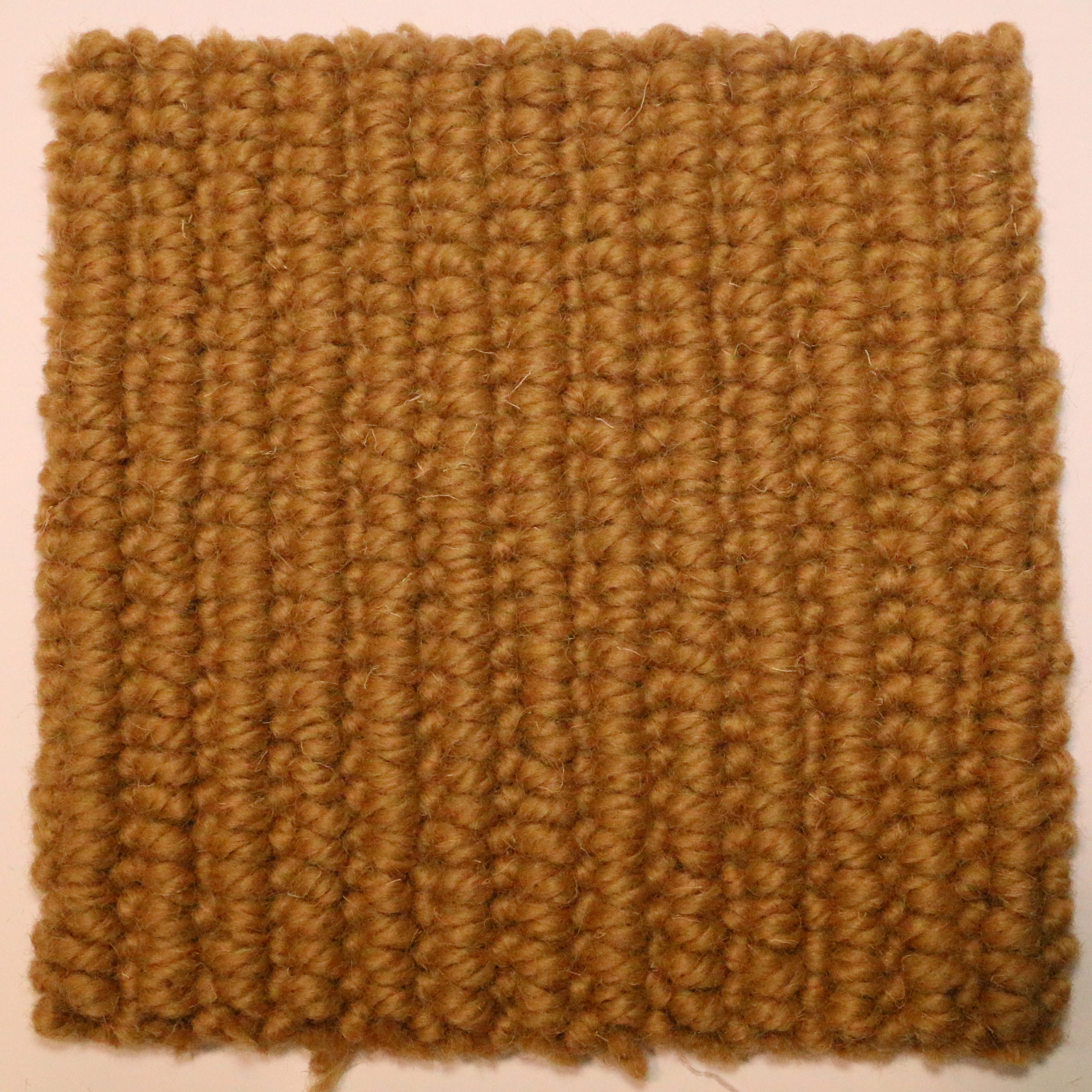

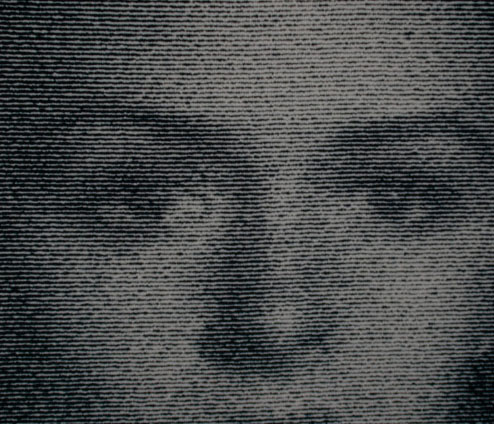

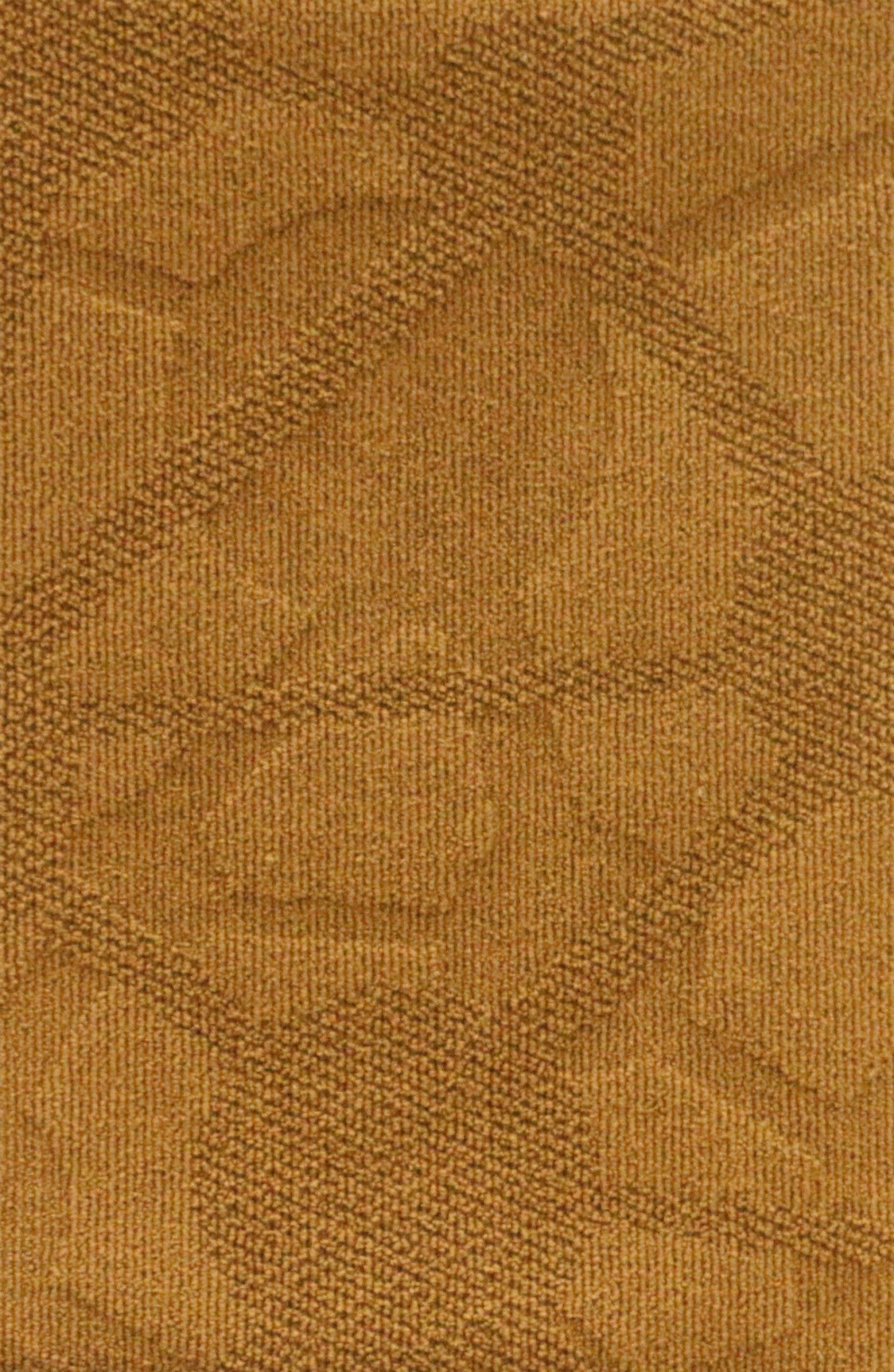

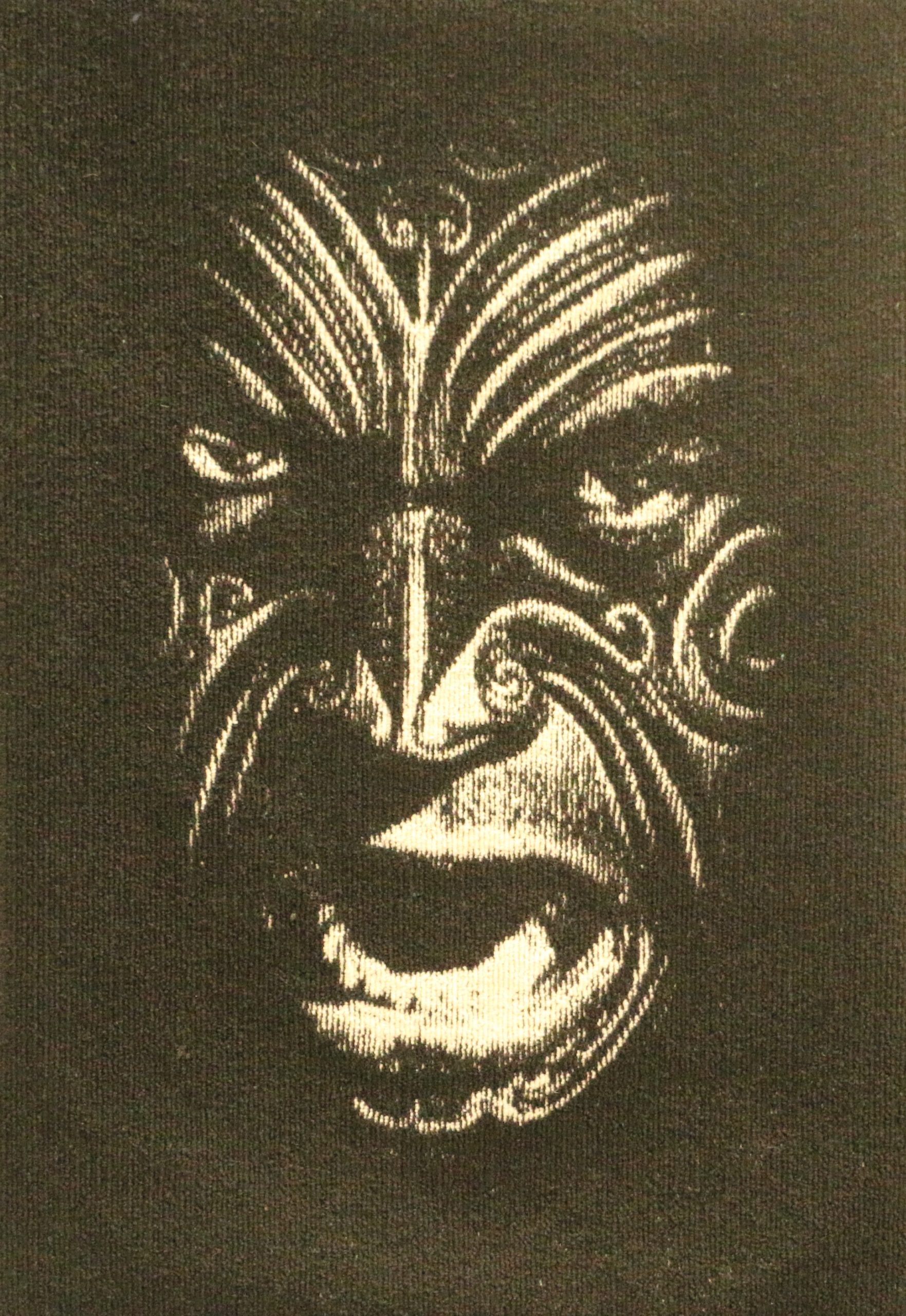

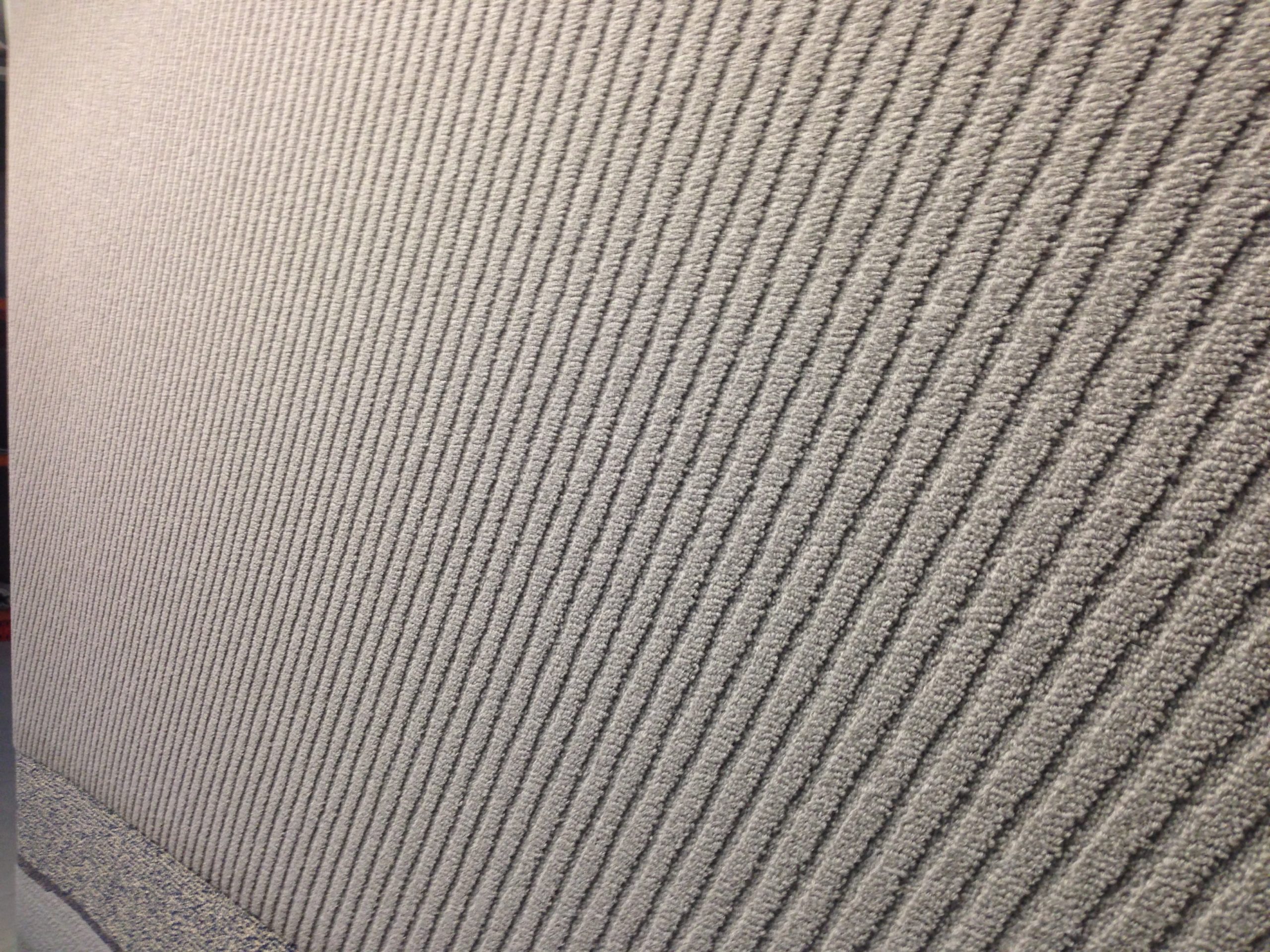

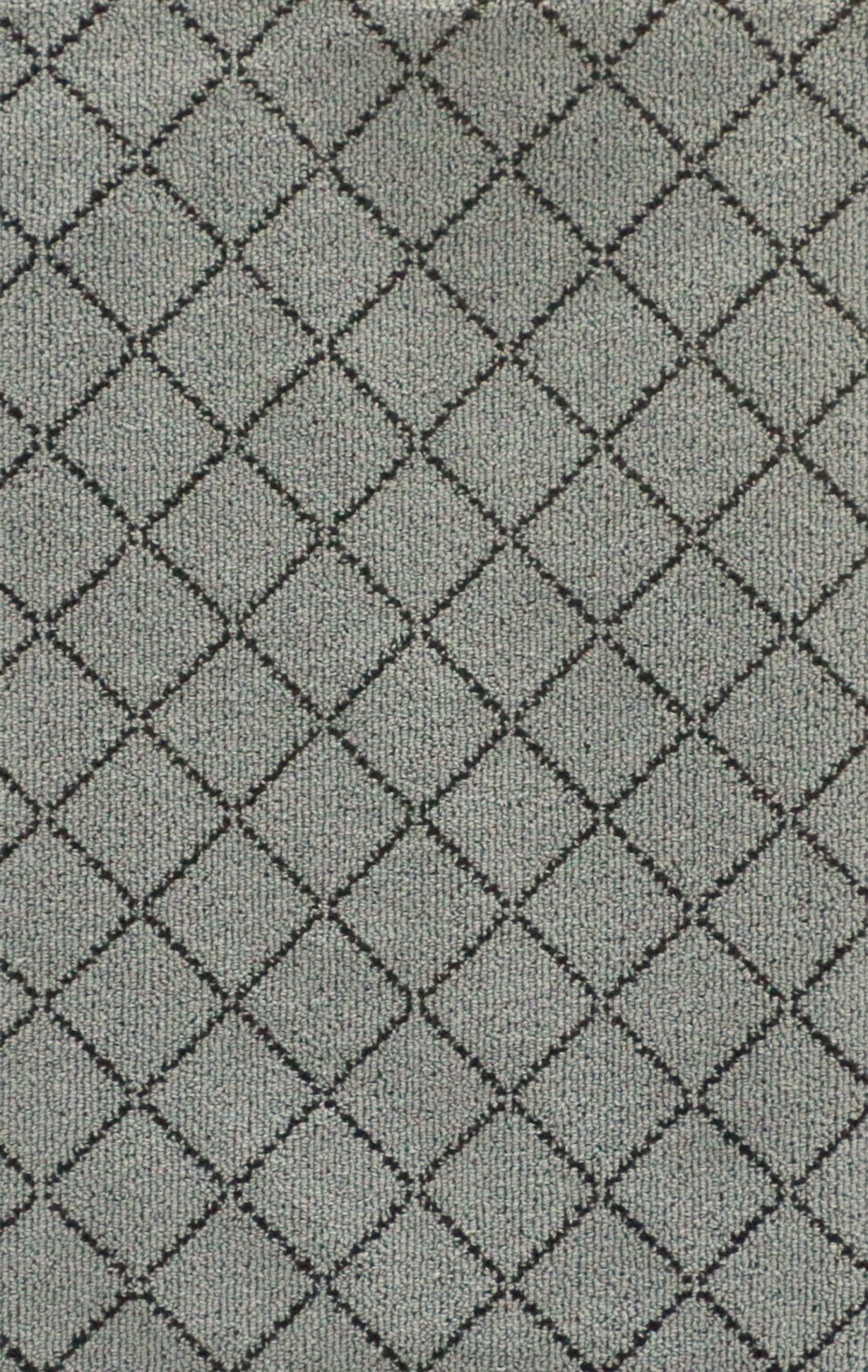

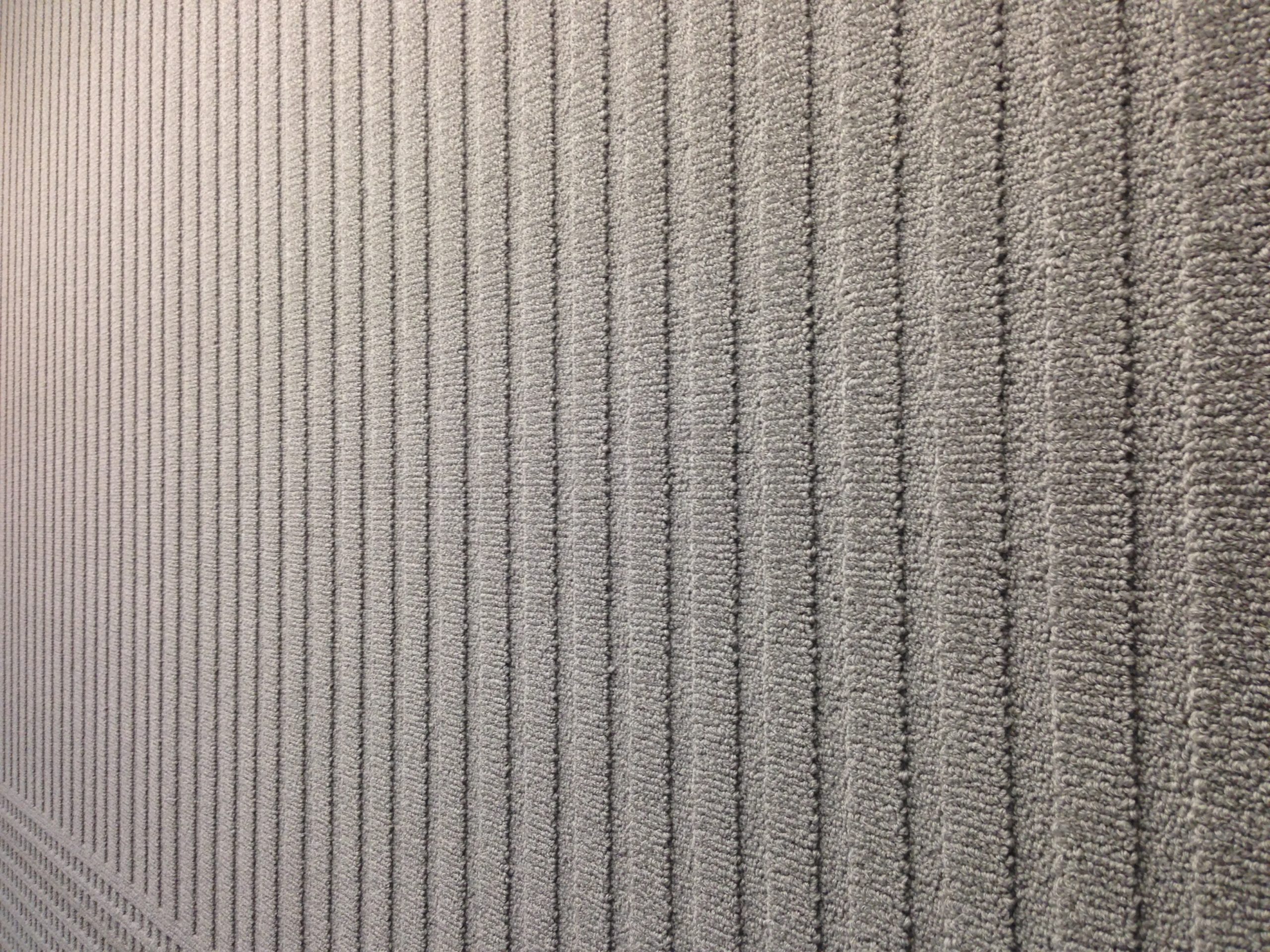

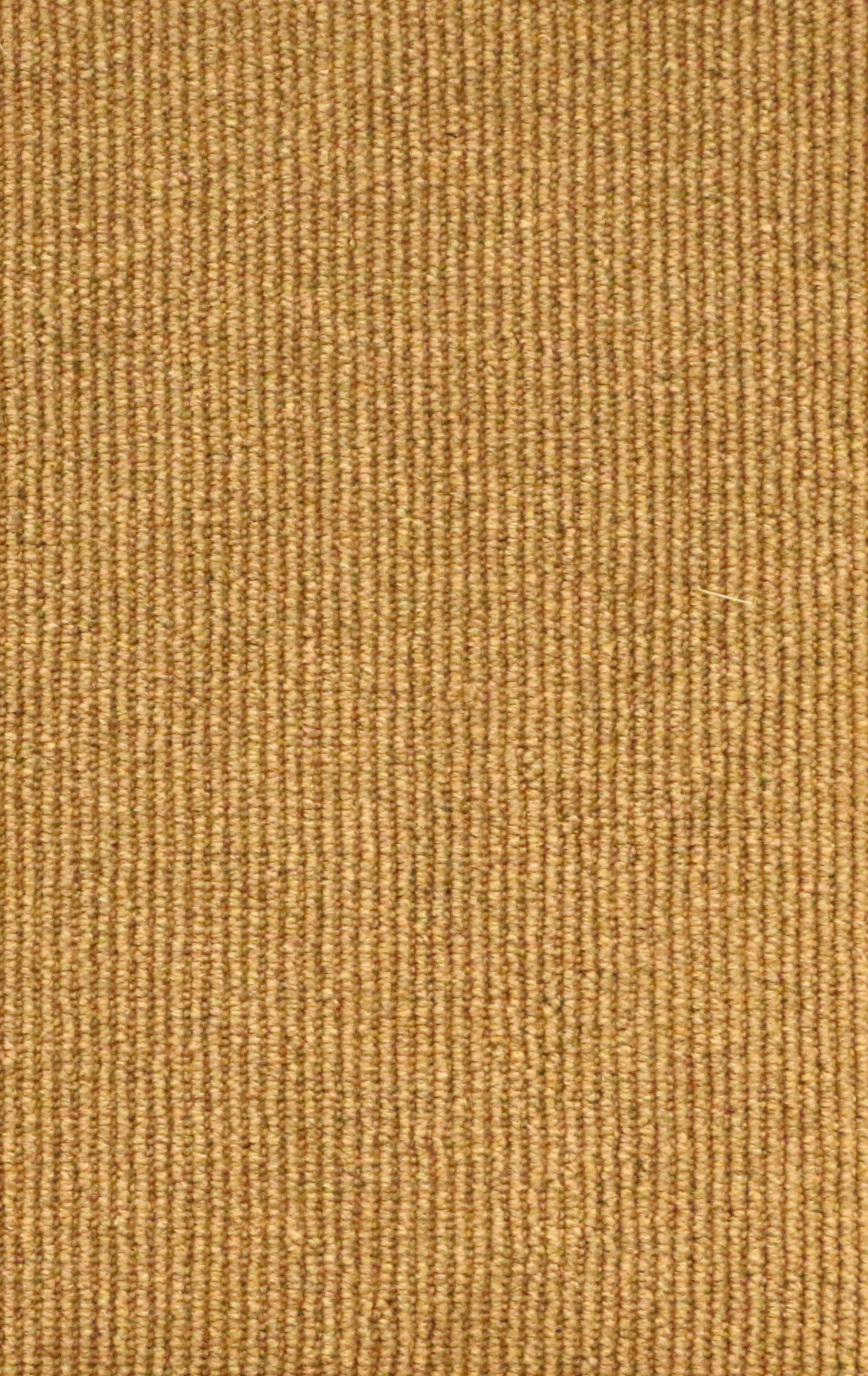

Rug and carpet samples made on the Hollow Needle:
Model(s): TMHN40, TMHN50,
dual colour optional
TECHNICAL SPECIFICATIONS (TM HN 40):
| Mtuft Hollow Needle TM HN 40 | ||
|---|---|---|
| Machine Length | 5350 mm | 17' 7" |
| Machine Width | 1690 mm | 5' 7" |
| Machine Height | 1850 mm | 6' 1" |
| Machine to Wall Suggested (access to finished) | 2000 mm | 6’ 7” |
| Machine to Creel Suggested | 1500 mm | 4' 11" |
| Area Required—Length | 8750 mm | 28’ 8" |
| Area Required—Width | 5190 mm | 17' 0" |
| Primary Backing Core Diameter | Min 110 Max 140 | Min 4.3” Max 5.5” |
| Finished Product max diameter | 800 mm | 2' 7" |
| Machine Mass | 1600 kg | 3527 lbs |
| Creel Dimensions (LxWxH) | 1380 x 900 x 1750 mm | 4'6" x 2'11"x 5'9" |
| Shipping | 20‘ Container | |
| Compressed Air Requirements (clean dry air) | 200 lit/min @ 7 bar | 7 cfm @ 100 psi |
| Power Requirements | 220/240 v Single Phase 10A | 220/240 v Single Phase 10A |
All specifications are subject to change without notice.
Note: Power is connected to an isolation switch on the exterior of the control box. Power supplied must be NON RCD (residual current device).
Machine can be wheeled into position by 2 people and is set on levelling feet when in position.
Ethernet connection is near power connection point
TECHNICAL SPECIFICATIONS (TM HN 50):
| Mtuft Hollow Needle TM HN 50 | ||
|---|---|---|
| Machine Length | 6350 mm | 20' 10" |
| Machine Width | 1690 mm | 5' 7" |
| Machine Height | 1850 mm | 6' 1" |
| Machine to Wall Suggested (access to finished) | 2000 mm | 6’ 7” |
| Machine to Creel Suggested | 1500 mm | 4' 11" |
| Area Required—Length | 9750 mm | 31' 11" |
| Area Required—Width | 5190 mm | 17' 0" |
| Primary Backing Core Diameter | Min 110 Max 140 | Min 4.3” Max 5.5” |
| Finished Product max diameter | 800 mm | 2' 7" |
| Machine Mass | 2300 Kg | 5070 lbs |
| Creel Dimensions (LxWxH) | 1380 x 900 x 1750 mm | 4'6" x 2'11"x 5'9" |
| Shipping | 40‘ Container | |
| Compressed Air Requirements (clean dry air) | 200 lit/min @ 7 bar | 7 cfm @ 100 psi |
| Power Requirements | 220/240 v Single Phase 10A | 220/240 v Single Phase 10A |
All specifications are subject to change without notice.
Note: Power is connected to an isolation switch on the exterior of the control box. Power supplied must be NON RCD (residual current device).
Machine can be wheeled into position by 2 people and is set on levelling feet when in position.
Ethernet connection is near power connection point
