Shearing Machine
Create professional samples that are a cut above the rest
Create professional samples that are a cut above the rest
Modra’s range of sample-shearing machines are designed to produce professionally sheared samples to suit your workspace.

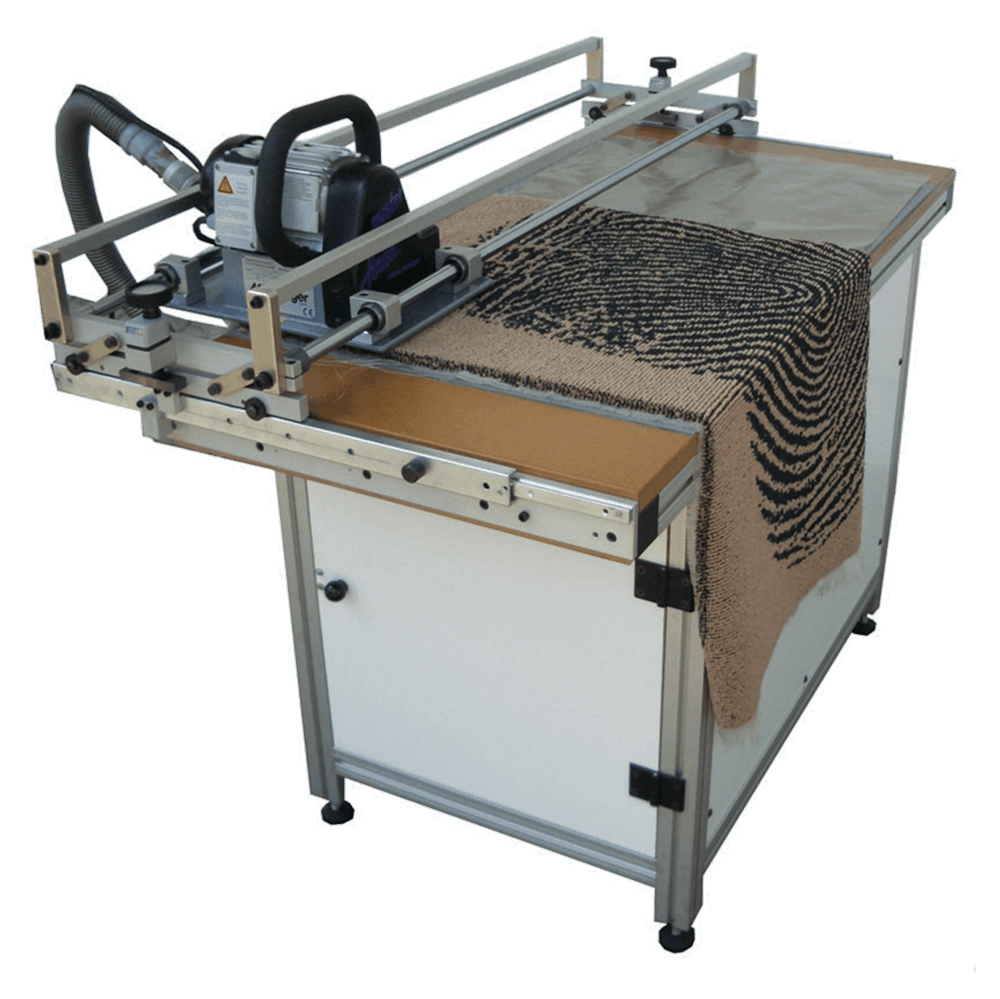

The ST1000 is a freestanding machine with a high-powered vacuum system to hold down and extract dust for safe, clean cut-pile samples. This machine features precision height-adjustment to 0.1mm to produce perfect samples every time.
The Modra ST500 is designed to be mounted on your existing work area, while the ST120 is suitable for handheld shearing.
![shearing-machine-trans](https://modra.com/wp-content/uploads/2022/03/shearing-machine-trans-1.png)
Features:
- Level or tip-shear samples in minutes
- Three models to suit your workspace
- Suitable for both Axminister and tufted samples
Benefits
The Modra ST500 is designed to be mounted on your existing work area, while the ST120 is suitable for handheld shearing.
Downloads
![](https://modra.com/wp-content/uploads/2022/03/brochure-icon.png)
Product
Brochure
![](https://modra.com/wp-content/uploads/2022/03/techspecs-icon.png)
Technical
Specifications
Request or Create
YOUR OWN SAMPLE
Ask us about the high-quality samples
made on the Shearing Machine.
CALL US ON +61 3 5622 3261
![mtuft-g2-sample](https://modra.com/wp-content/uploads/2022/03/mtuft-g2-sample.jpg)
Model(s): ST1000, ST500, ST120
TECHNICAL SPECIFICATIONS:
Shearing System – Model ST1000 | |
---|---|
Machine Depth | 650 mm / 2’ 1” |
Machine Height | 1,100 mm x 3’ 7” |
Machine Width | 1,560 mm / 5’ 1” |
Area Required - Width - Depth | Area Required 1,700 kg / 5’ 7” 1,500 mm x 4’ 11” |
Machine Mass | 235 kg / 518 lbs |
Shipping Crate Dimensions (LxWxD) | 1,600 x 700 x 1,900 mm / 5’3” x 2’4” x 6’3” |
Shipping Total Mass | 250 kg / 651 lbs |
Noise Levels | 85 dBa at 1 metre |
Power Requirements - Dust Extraction - Shearing Head - Vacuum Hold-Down | Power Requirements 220 / 240 v Single Phase 10 A 220 / 240 v Single Phase 10 A 380 / 415 v 3 Phase 20 A |
All specifications are subject to change without notice
Note: Power wiring must include earth
