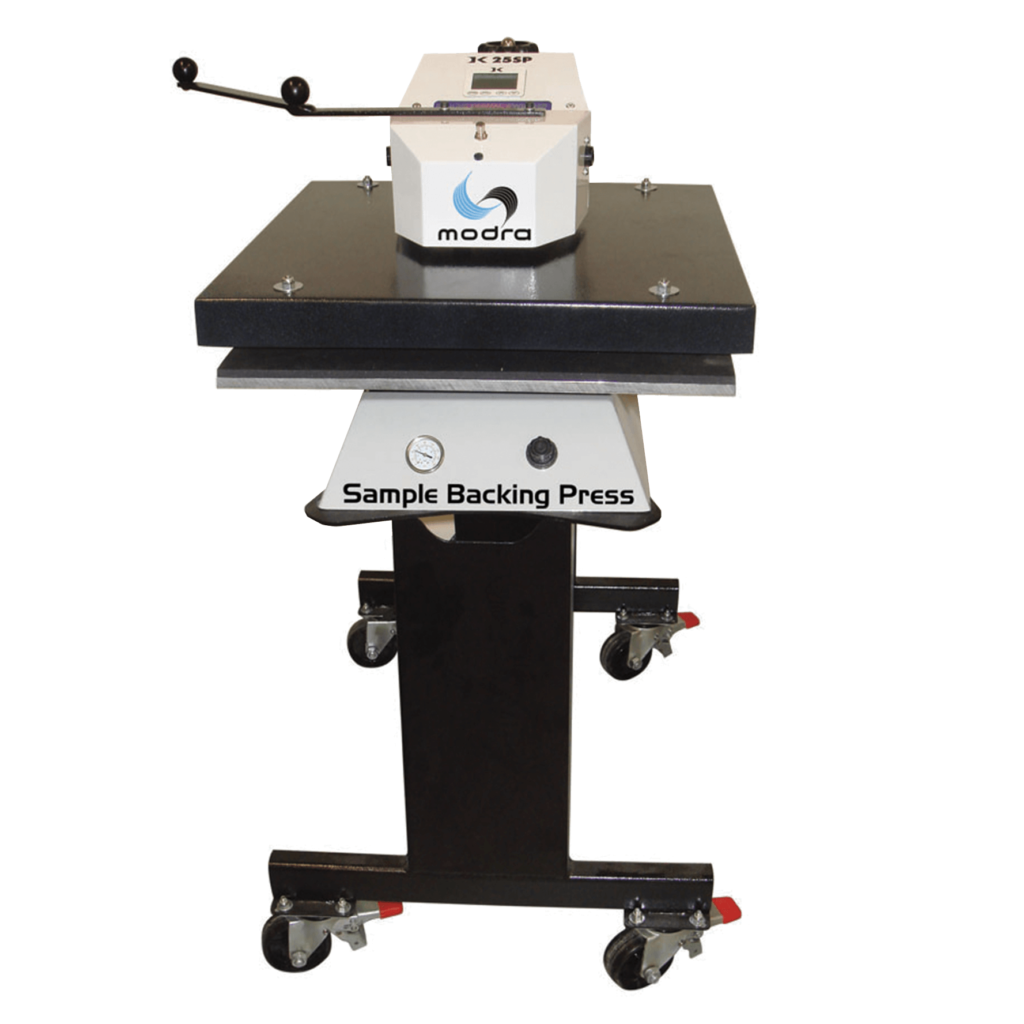

Sample Backing Press
A beautiful carpet sample deserves the right backing
Professionally finished carpet samples that showcase your designs
Win over clients with professionally finished carpet samples that show your designs in their best light.
This machine enables you to put the finishing touches on carpet samples of up to 500 x 500mm cleanly and simply using our range of hotmelt backing materials.
The Modra Sample Backing Press is specifically designed to back samples made with the Modra Kibby and is also suitable for use with our Mtuft machines.
Features:
- Create professionally finished samples in minutes
- A range of hotmelt backing materials available
- Suitable for both woven and tufted samples
This machine enables you to put the finishing touches on carpet samples of up to 500 x 500mm
Downloads
Product
Brochure
Technical
Specifications
Reference
List
Request or Create
YOUR OWN SAMPLE
Ask us about the high-quality samples
made on the Sample Backing Press machine.
CALL US ON +61 3 5622 3261
Model(s): DK25SP
TECHNICAL SPECIFICATIONS:
| Sample Backing Press – Model DK25SP | |
|---|---|
| Machine Depth - Closed - Open | Machine Depth 1,000 mm / 3’ 3” 1,500 mm / 4’ 11” |
| Machine Width - Closed - Open | Machine Width 620 mm / 2’ 1,200 mm / 3’ 11” |
| Area required - Width - Depth | Area required 1,200 mm / 3’ 11” 2,000 mm / 6’ 7” |
| Machine Mass | 200 kg / 440 lbs |
| Shipping Crate Dimensions (LxWxH) | 830 x 970 x 1,480 mm 33” x 38” x 58” |
| Shipping Total Mass | 230 kg / 507 lbs |
| Noise Level | 72 dBa at 1 metre |
| Compressed Air Requirements – dry, clean air | 150 lit/min @ 7 bar 5 cfm @ 100 psi |
| Power Requirements | 220 / 240 v Single Phase 20 A |
All specifications are subject to change without notice
Note: Power wiring must include earth.
Machine can be wheeled into position by hand and has lockable feet.
