24 Needle Mtuft Pro
A sampling and small production solution for carpet tiles and rugs
A sampling and small production solution for carpet tiles, carpets & rugs
Features:
- Use of modular gauge parts means quick changeover between product gauges
- Suitable for large-scale sampling or small-scale production
- loop construction
- Productivity example: 1/10th gauge, 23/10cm stitch rate gives 7.0 sqm/hour
- 2.1m maximum stitching width
- 24 individual yarn feeds
Downloads
Technical
Specifications
Reference
List
Request or Create
YOUR OWN SAMPLE
Ask us about the high-quality samples
made on the 24 Needle Mtuft Pro machine.
CALL US ON +61 3 5622 3261
Sample Gallery

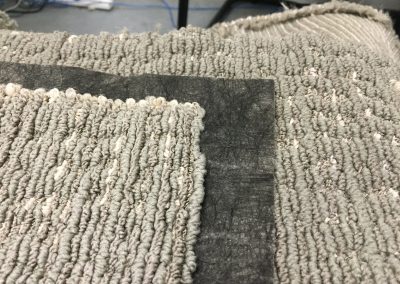

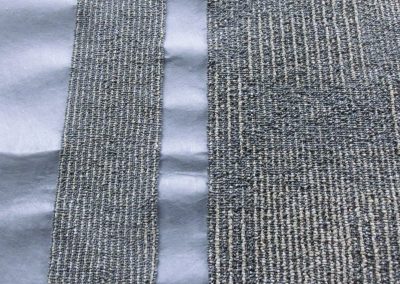

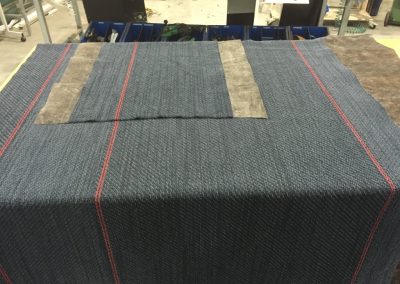

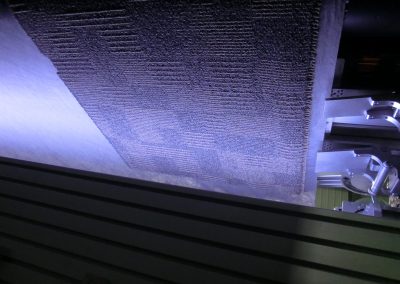

Carpet samples made on the 24 Needle Mtuft Pro:
Model(s): TMP21, TMP50
TECHNICAL SPECIFICATIONS:
| Model TMP21 | TMP21 |
|---|---|
| Number of Yarn Positions | 24 |
| Maximum Tufting Width | 2100 mm |
| Required Backing Width | Tufting width + 100 mm |
| Dimensions WxHxD mm | 4200 x 2000 x 1500 |
| Machine Mass | 2400 Kg |
| Internal Roll Max Diameter | 500 mm |
| External Roll Max Diameter | 800 mm |
| Machine Speed | Max 1200 rpm |
| Product Take-up | Customer supplied |
| Creel | Customer supplied |
| Power Requirements | 400-415V 3 phase 20A |
| Air Requirements | 200-300 lit/min @ 8 bar |
All specifications subject to change without notice
